Column Cast Iron Radiators

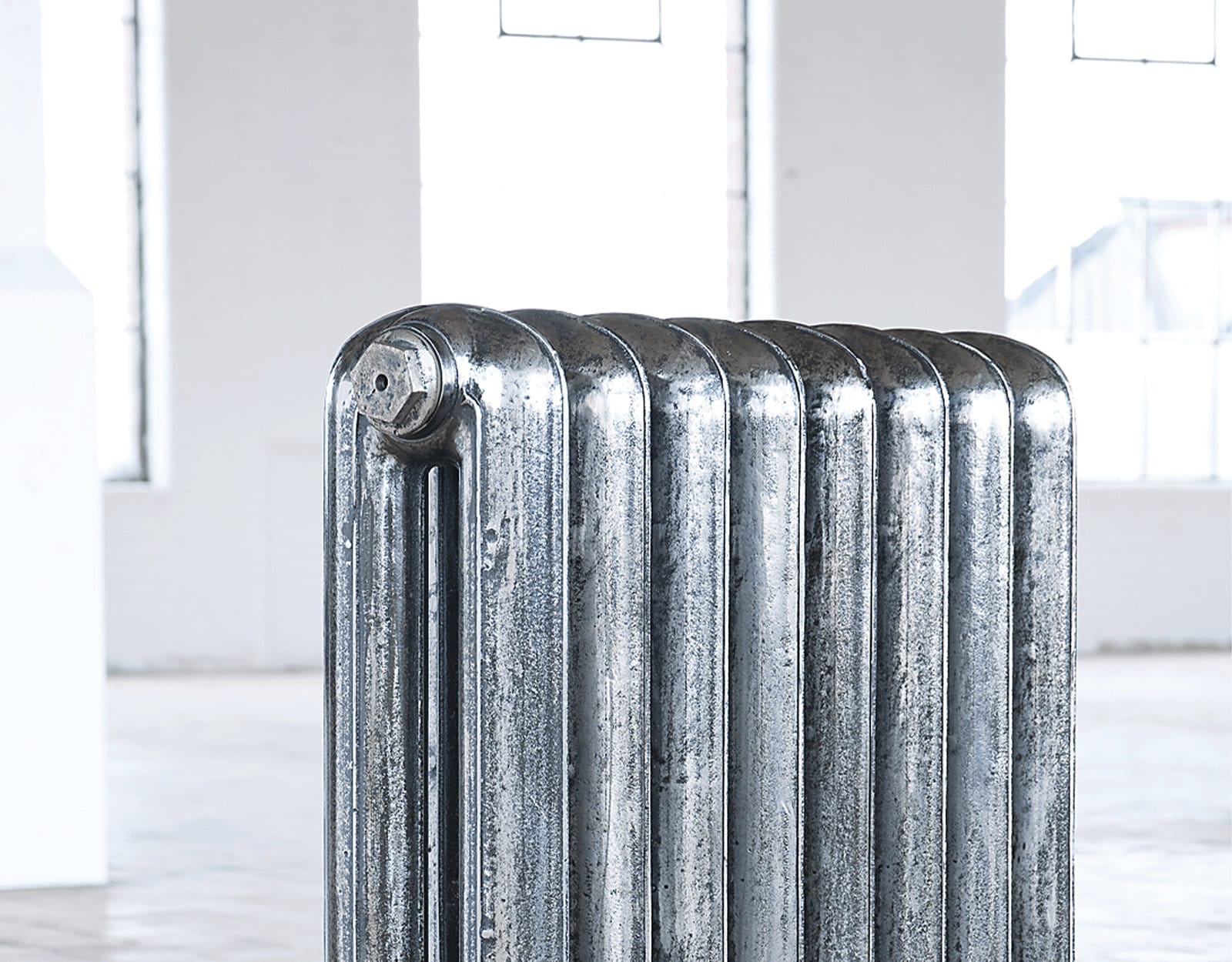

The Beaumont 3 Column Radiator
Elegant. Efficient. Enduring.
The Beaumont cast iron radiator is a bold nod to the elegance of 19th-century design, reimagined for modern restoration. With its slim 3-column profile and crisp, classic lines, the Beaumont delivers more than heat it
delivers heritage.
Available in three adaptable heights: 450mm, 645mm, and 745mm. This model offers flexibility across a range of interior spaces. Whether tucked beneath period sash windows or standing tall as a feature in modern lofts, the Beaumont complements both traditional and contemporary aesthetics with ease.
Favoured by interior designers, developers, and restoration specialists alike, its proportions offer balance,
character, and warmth. Crafted using time-honoured casting methods and finished in your choice of paint or
polish, the Beaumont is not just a heat source—it’s a design element in its own right.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

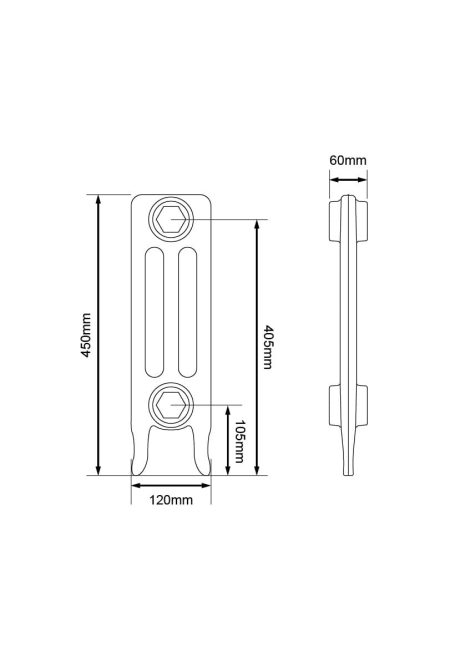

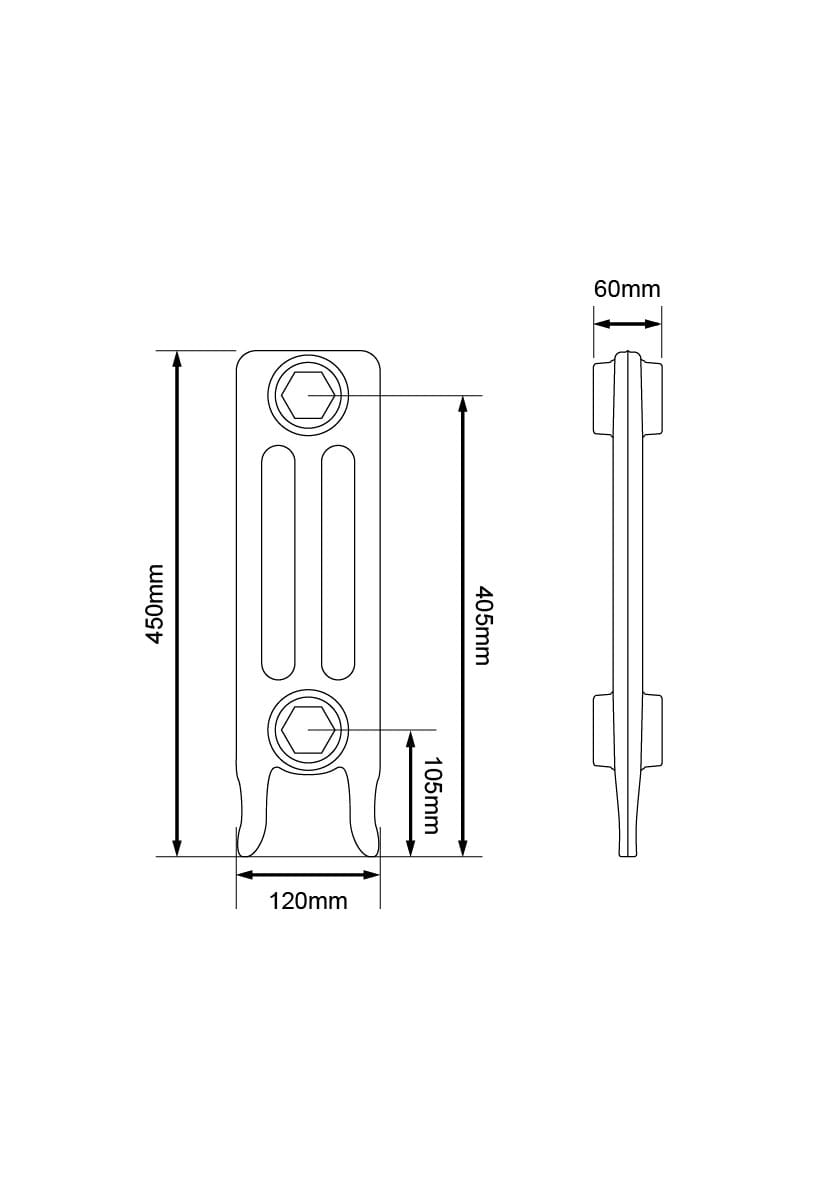

450mm Height Information
Leg Section Height 450 mm
Section Length 60 mm
Middle Section Height 386 mm
Section Depth 120 mm
Bottom Inlet To Floor 105 mm
Top Inlet To Floor 405 mm
Pipe Centres To Skirt 60 mm
Heat Output
Delta at 50˚C 89 Watts / 171 BTUs
Weight
Empty weight per leg section
3.5 KG
Empty weight per middle section
3.1 KG
Filled weight per leg section
4 KG
Filled weight per middle section
3.6 KG

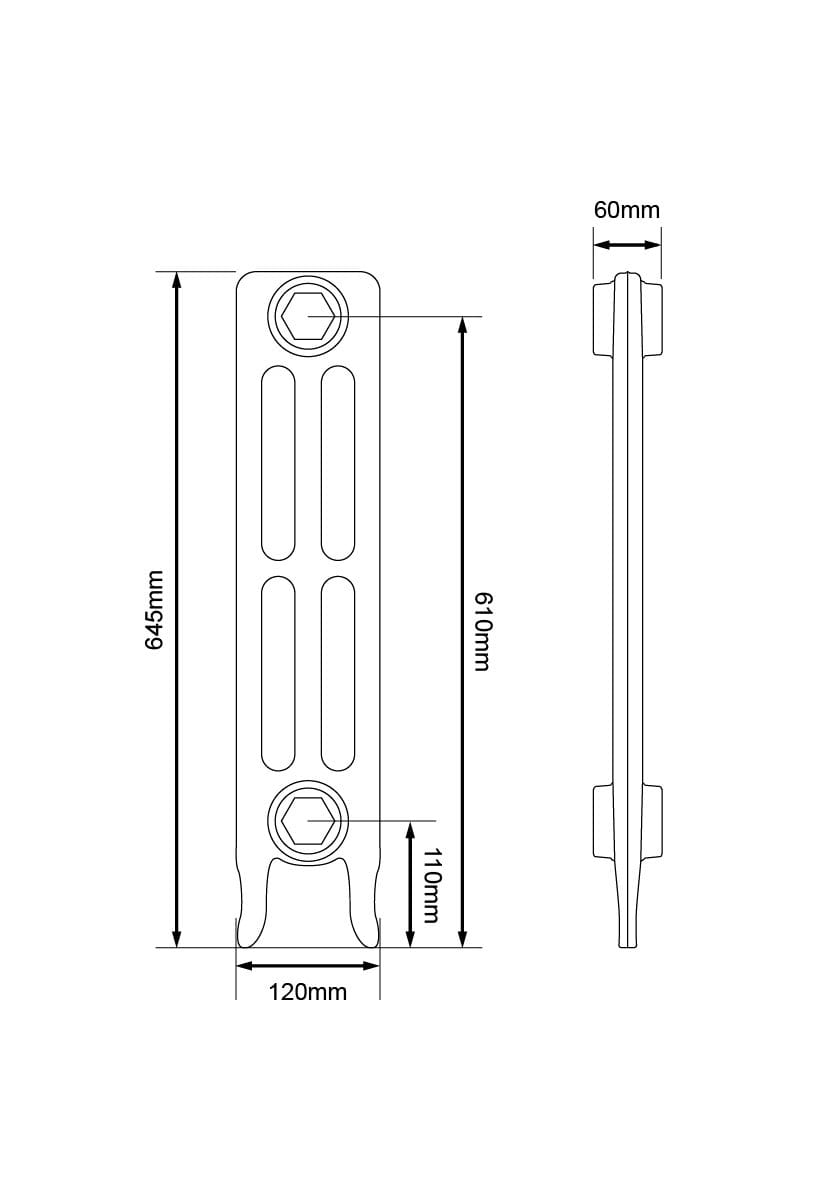

645mm Height Information
Leg Section Height 645 mm
Section Length 60 mm
Middle Section Height 575 mm
Section Depth 120 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 610 mm
Pipe Centres To Skirt 60 mm
Heat Output
Delta at 50˚C 76 Watts / 259 BTUs
Weight
Empty weight per leg section
47 KG
Empty weight per middle section
4.4 KG
Filled weight per leg section
5.6 KG
Filled weight per middle section
5.3 KG

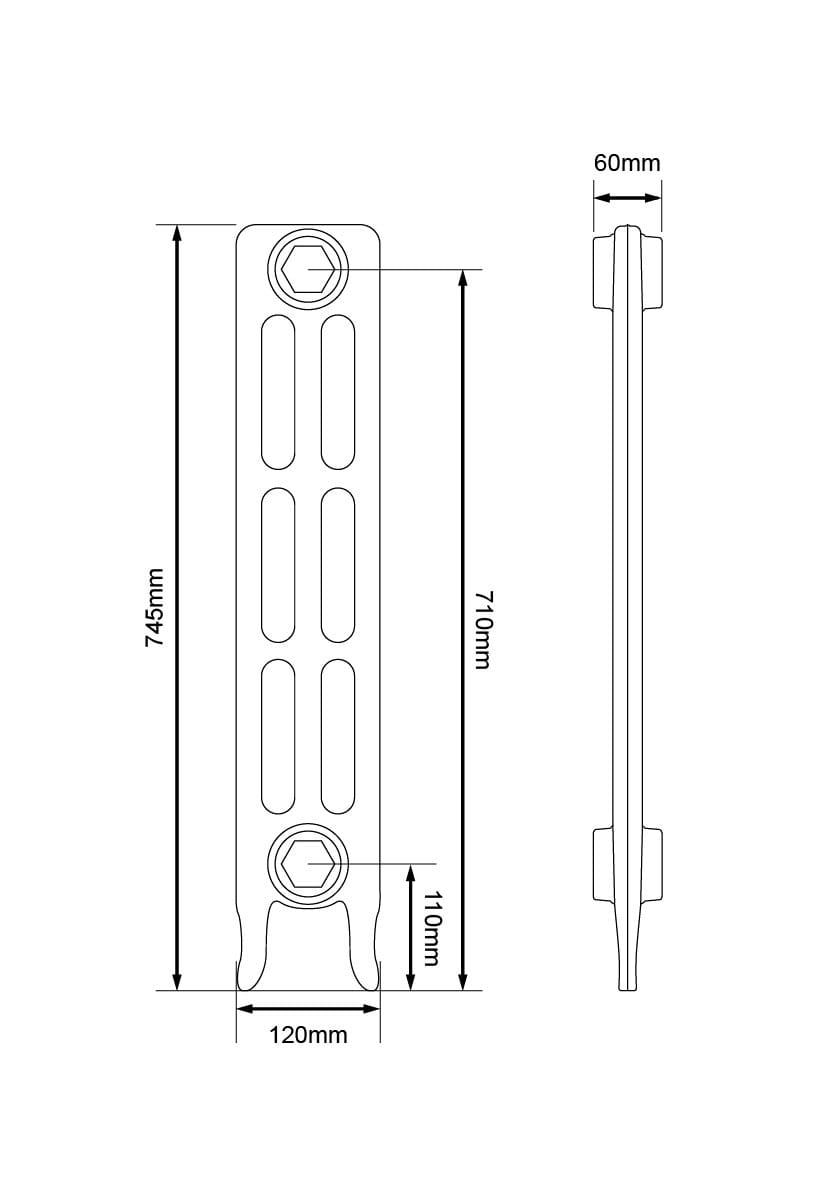

745mm Height Information
Leg Section Height 745 mm
Section Length 60 mm
Middle Section Height 675 mm
Section Depth 120 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 710 mm
Pipe Centres To Skirt 60 mm
Heat Output
Delta at 50˚C 87 Watts / 297 BTUs
Weight
Empty weight per leg section
5.6 KG
Empty weight per middle section
5 KG
Filled weight per leg section
6.7 KG
Filled weight per middle section
6.1 KG

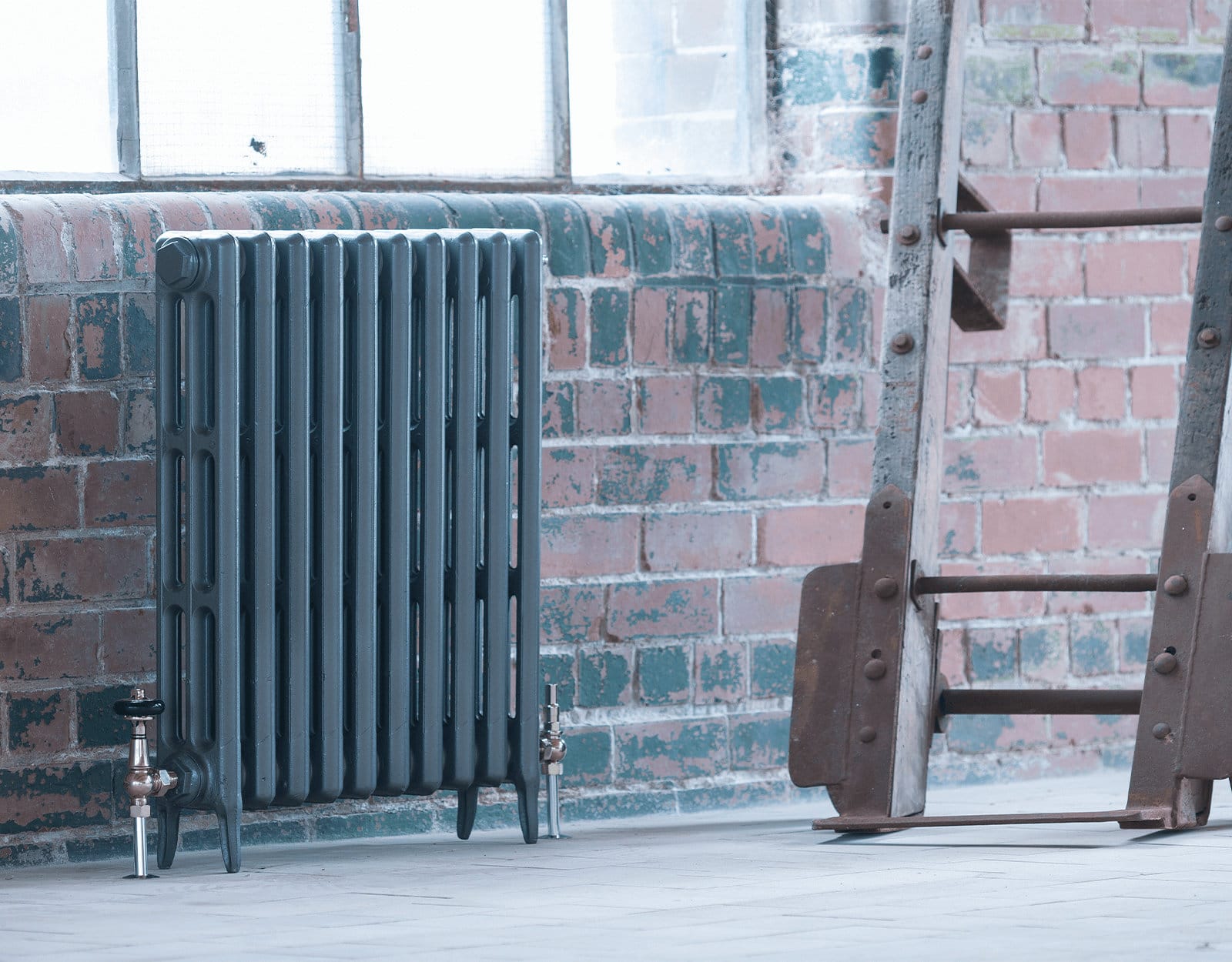

The Beaumont 4 Column Radiator
Elegant. Efficient. Enduring.
The Beaumont Column Radiator is a refined take on a timeless classic. With its four-column design and graceful, symmetrical form, it delivers both exceptional heat output and architectural beauty. Available in four versatile heights—455mm, 650mm, 756mm, and 813mm—it offers flexibility for every space, from beneath windows to tall feature walls.
Each radiator is individually cast and hand-finished, with a wide choice of lengths and a rich palette of colours to complement any interior. Whether you’re restoring a period property or adding timeless detail to a modern home, the Beaumont brings warmth, character, and lasting performance.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

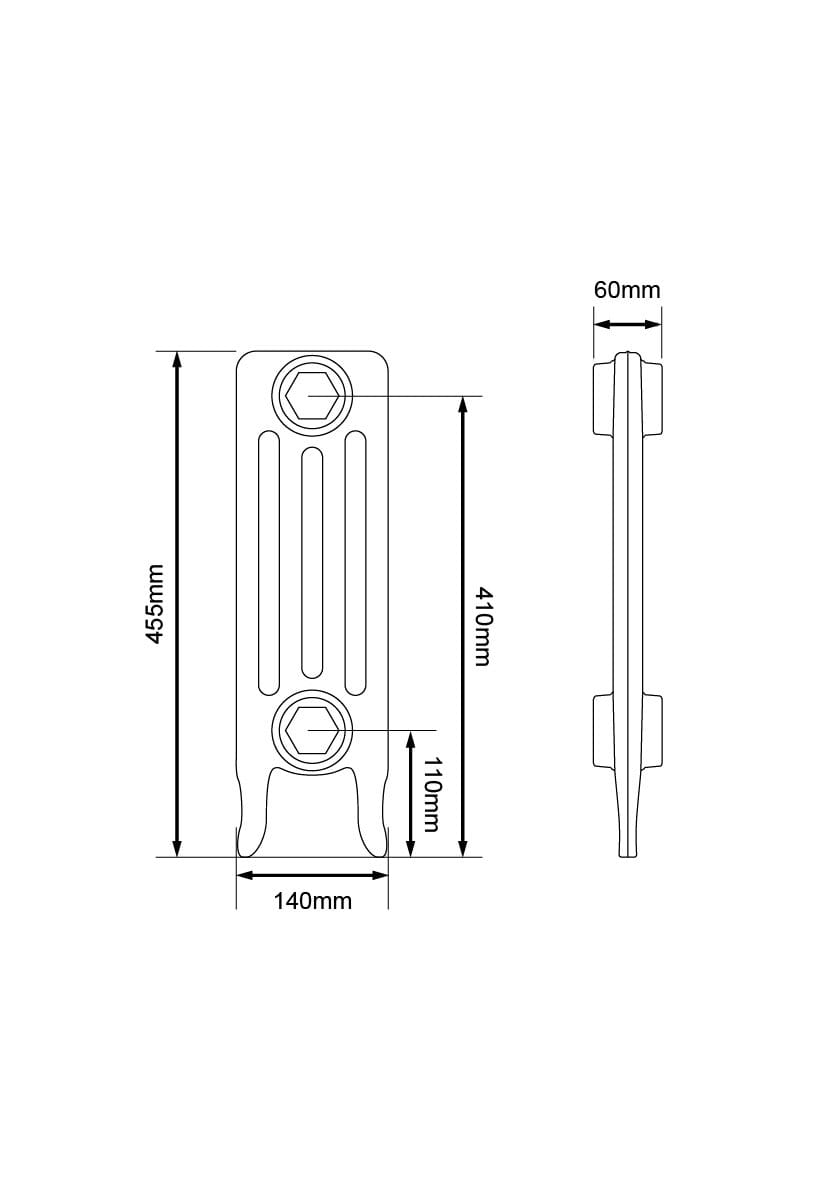

455mm Height Information
Leg Section Height 455 mm
Section Length 60 mm
Middle Section Height 380 mm
Section Depth 140 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 410 mm
Pipe Centres To Skirt 70 mm
Heat Output
Delta at 50˚C 57 Watts / 195 BTUs
Weight
Empty weight per leg section
3.4 KG
Empty weight per middle section
3 KG
Filled weight per leg section
3.9 KG
Filled weight per middle section
3,5 KG

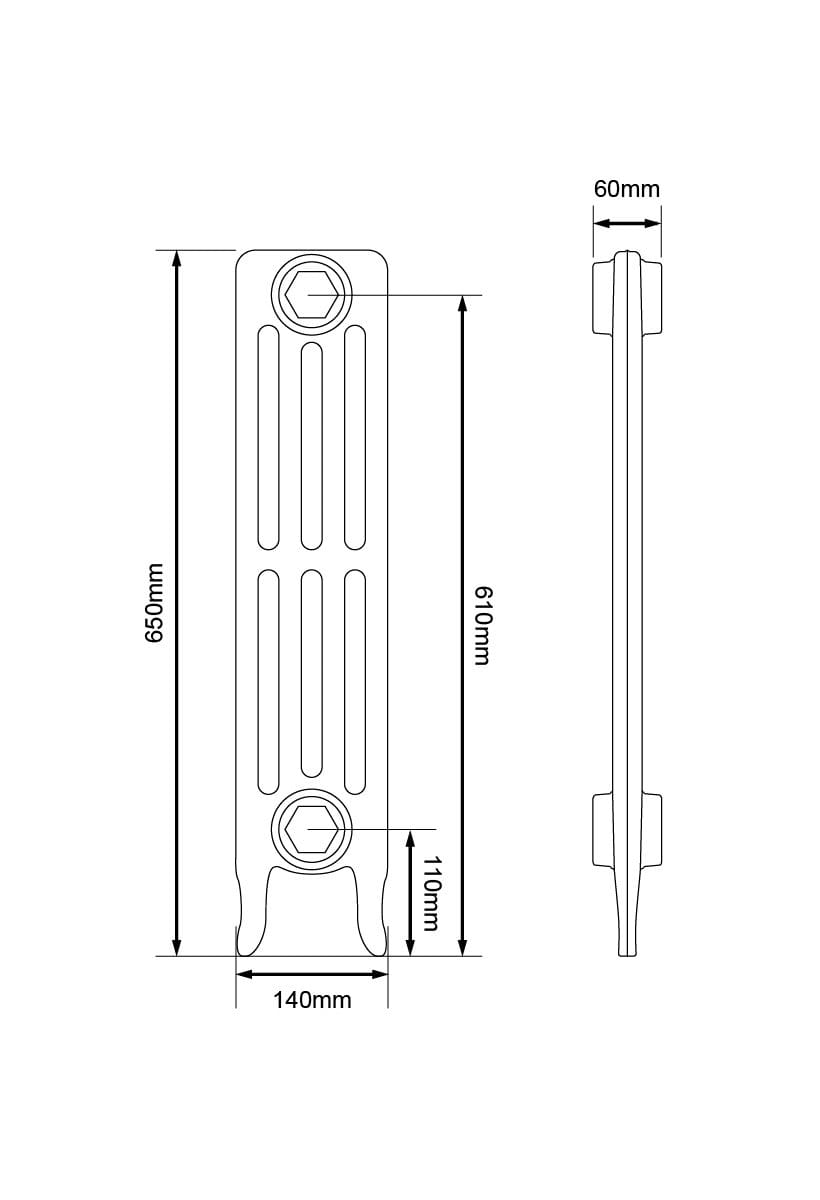

650mm Height Information
Leg Section Height 650 mm
Section Length 60 mm
Middle Section Height 580 mm
Section Depth 140 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 610 mm
Pipe Centres To Skirt 70 mm
Heat Output
Delta at 50˚C 82.5 Watts / 281 BTUs
Weight
Empty weight per leg section
4.8 KG
Empty weight per middle section
4.4 KG
Filled weight per leg section
5.5 KG
Filled weight per middle section
5.1 KG

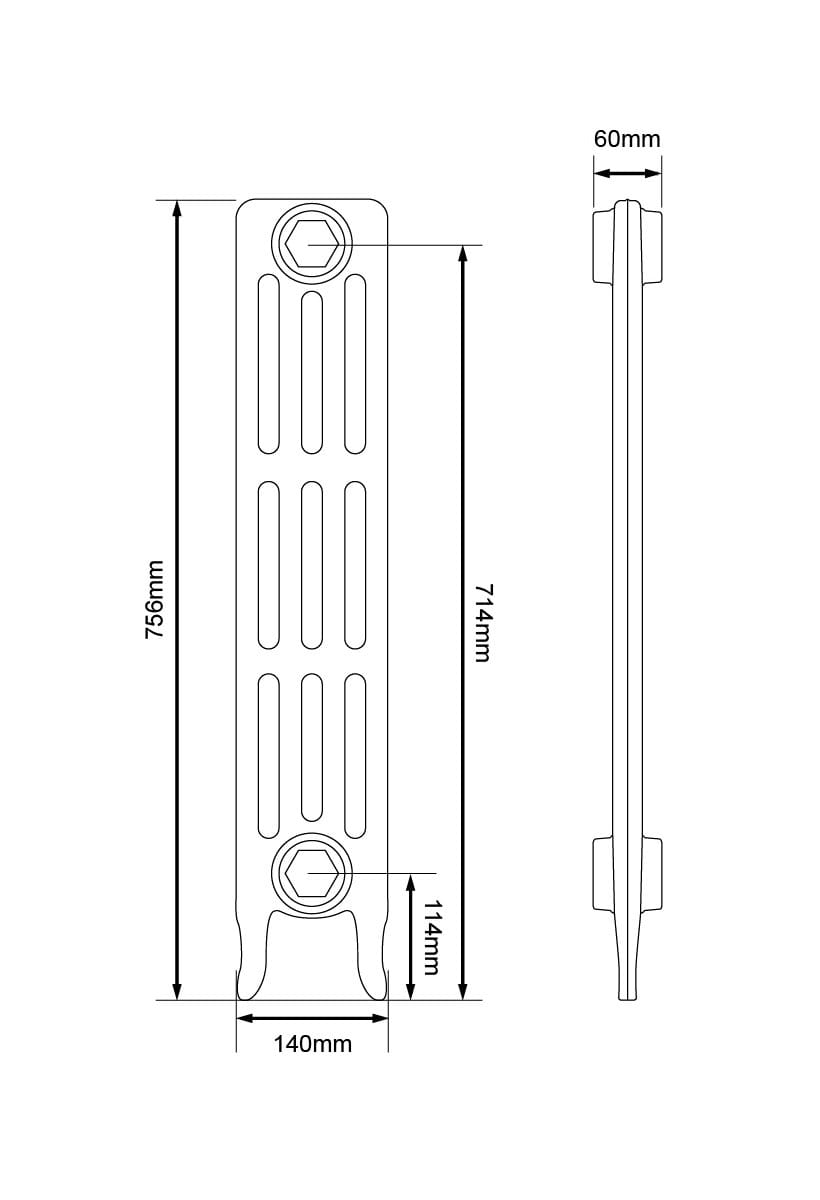

756mm Height Information
Leg Section Height 756 mm
Section Length 60 mm
Middle Section Height 680 mm
Section Depth 140250 mm
Bottom Inlet To Floor 114 mm
Top Inlet To Floor 714 mm
Pipe Centres To Skirt 70 mm
Heat Output
Delta at 50˚C 97.2 Watts / 331 BTUs
Weight
Empty weight per leg section
5.7 KG
Empty weight per middle section
5.4 KG
Filled weight per leg section
6.5 KG
Filled weight per middle section
6.2 KG

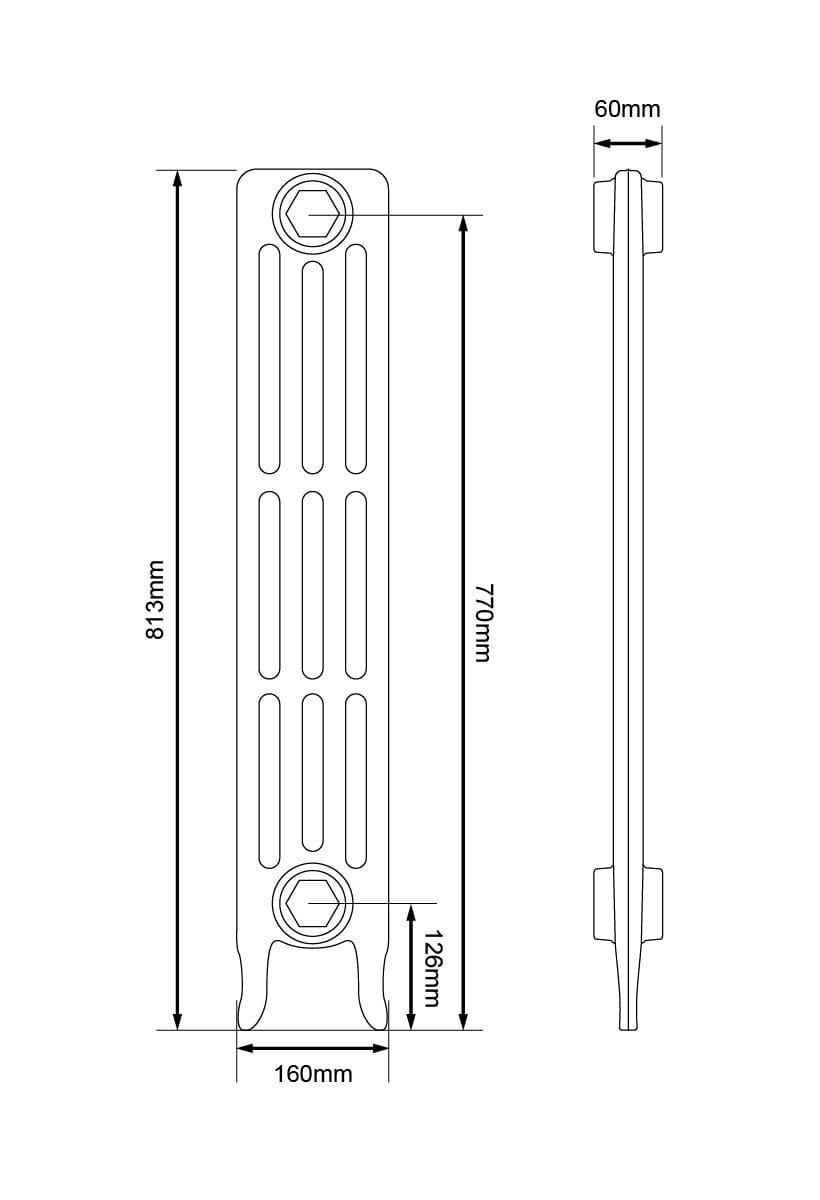

813mm Height Information
Leg Section Height 813 mm
Section Length 60 mm
Middle Section Height 725 mm
Section Depth 160 mm
Bottom Inlet To Floor 126 mm
Top Inlet To Floor 770 mm
Pipe Centres To Skirt 80 mm
Heat Output
Delta at 50˚C 105 Watts / 358 BTUs
Weight
Empty weight per leg section
6.5 KG
Empty weight per middle section 5.8 KG
Filled weight per leg section
7.6 KG
Filled weight per middle section
6.9 KG

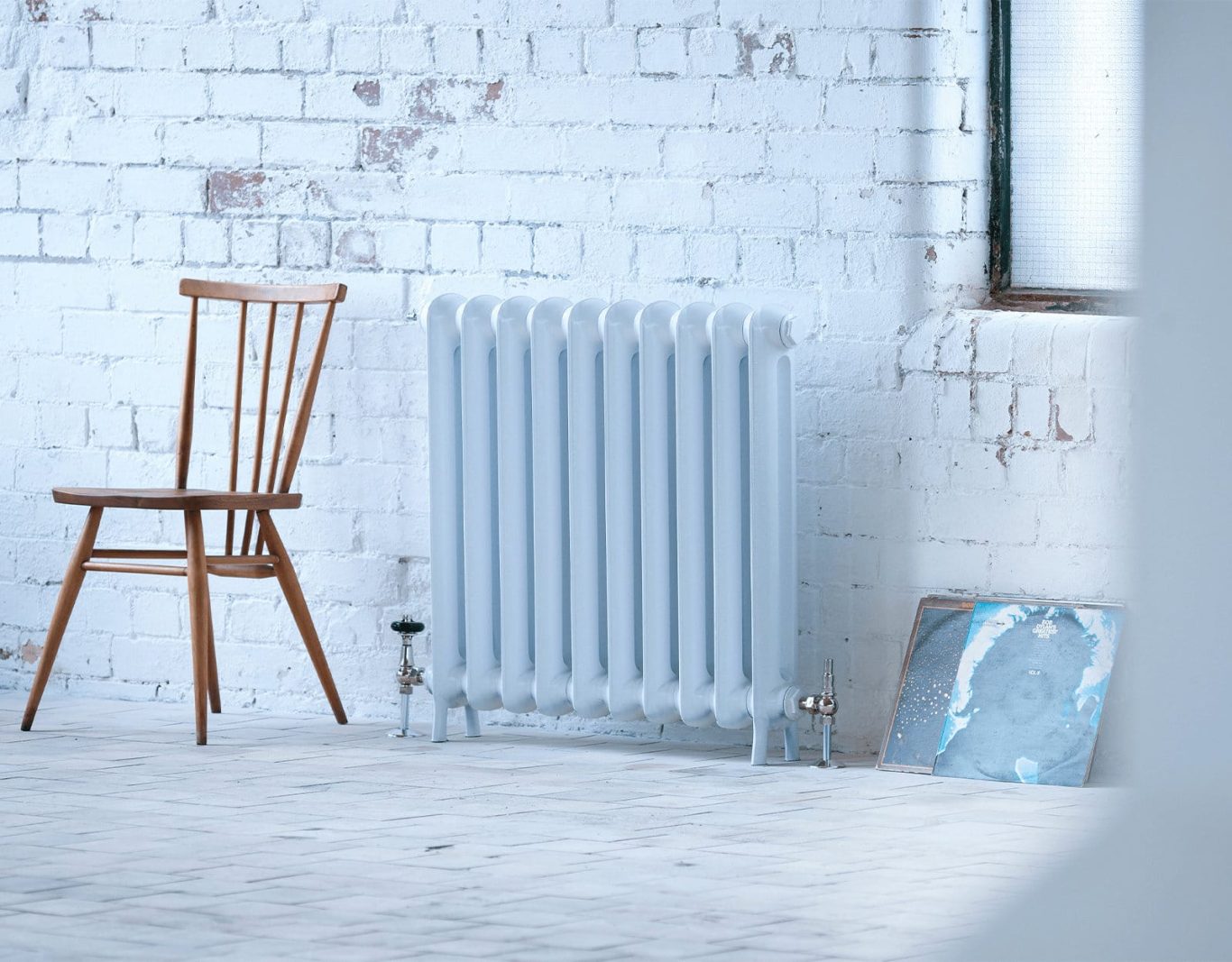

The Ashbury 2 Column Radiator
Slim. Sophisticated. Authentic.
The Ashbury 2 Column offers all the period charm of Edwardian design in a slender, space conscious profile. Perfect for hallways, bedrooms, bathrooms, or any room where wall space is limited, this refined radiator delivers efficient warmth without compromising on style.
Its elegant silhouette brings a lightness to traditional cast iron, making it an ideal choice for both compact
heritage interiors and contemporary spaces seeking classic character. Designers and homeowners love the Ashbury 2 Column for its graceful lines, gentle proportions, and effortless integration into refined schemes.
Cast with precision and finished to your preference—painted, burnished, or polished—it’s proof that even the most understated pieces can make a lasting impression.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

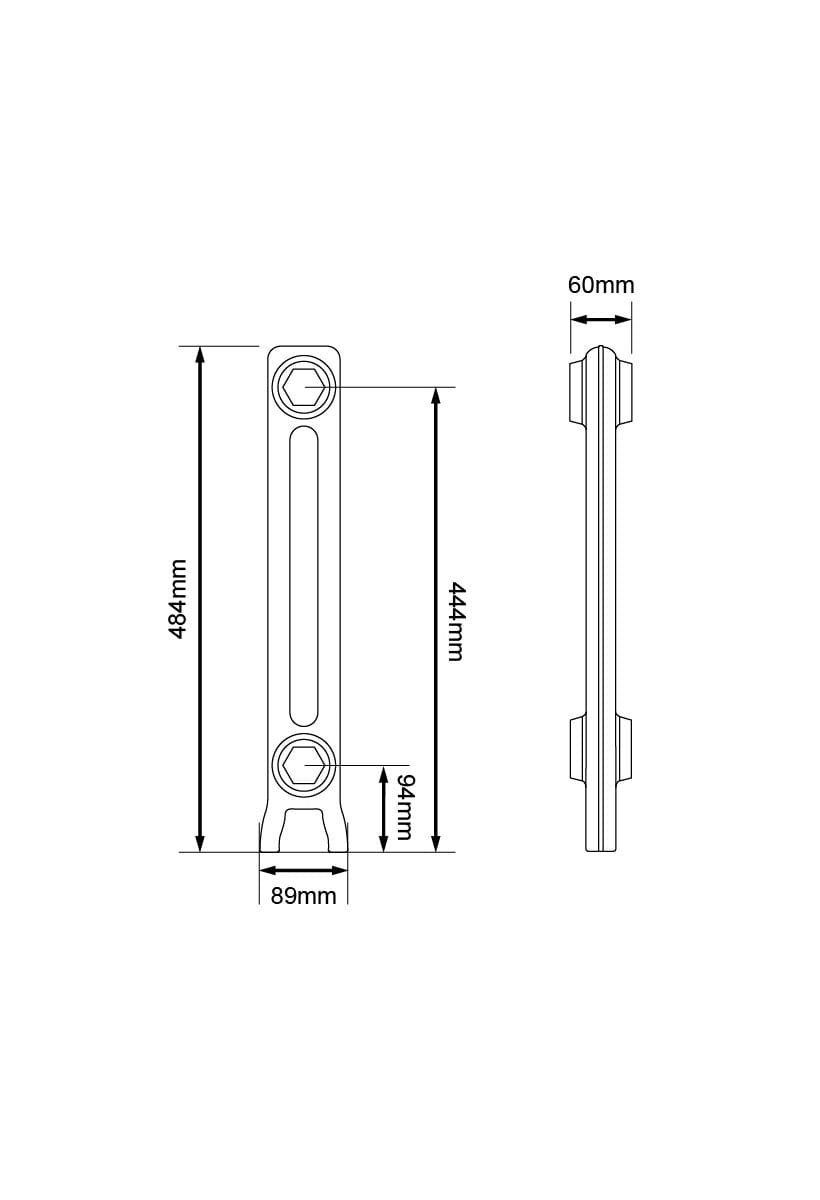

484mm Height Information
Leg Section Height 484 mm
Section Length 60 mm
Middle Section Height 430 mm
Section Depth 89 mm
Bottom Inlet To Floor 94 mm
Top Inlet To Floor 444 mm
Pipe Centres To Skirt 44.5 mm
Heat Output
Delta at 50˚C 43Watts / 147 BTUs
Weight
Empty weight per leg section
3.0 KG
Empty weight per middle section
2.5 KG
Filled weight per leg section
3.4 KG
Filled weight per middle section
2.9 KG

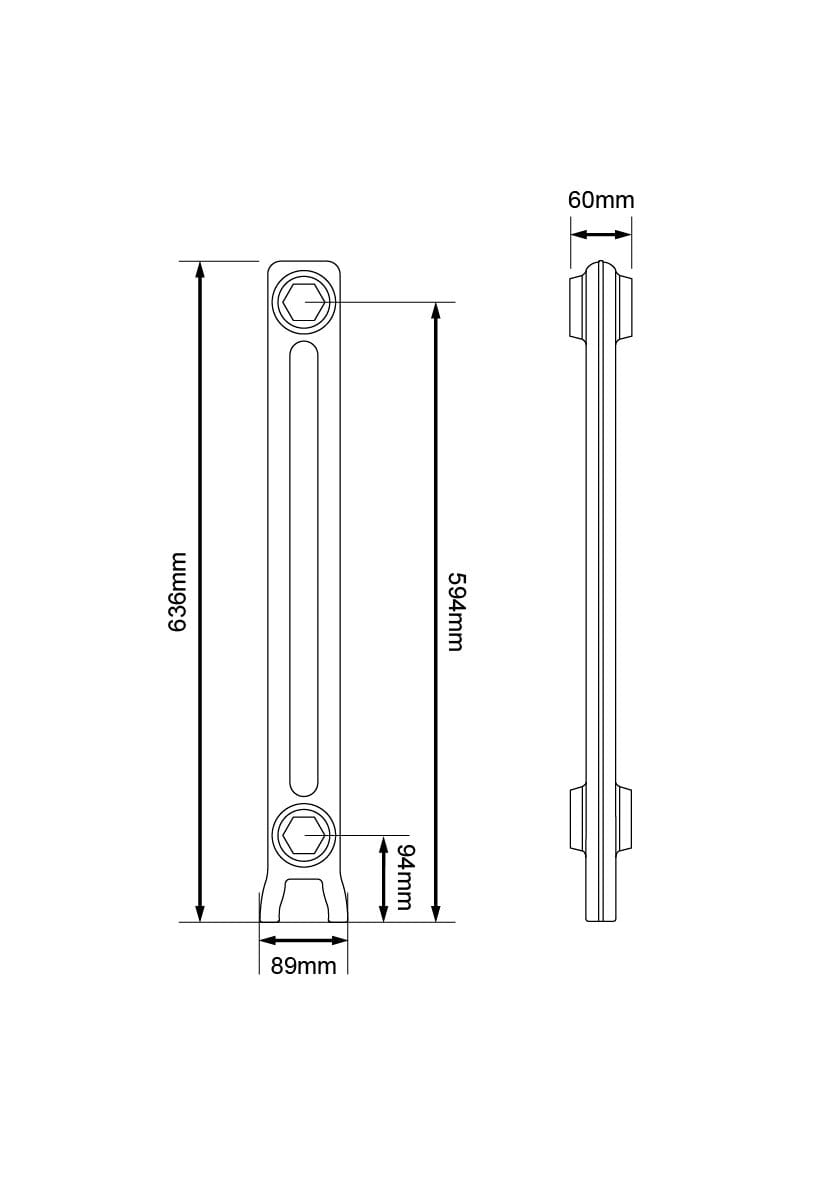

636mm Height Information
Leg Section Height 636 mm
Section Length 60 mm
Middle Section Height 580 mm
Section Depth 89 mm
Bottom Inlet To Floor 94 mm
Top Inlet To Floor 594 mm
Pipe Centres To Skirt 44.5 mm
Heat Output
Delta at 50˚C 54 Watts / 184 BTUs
Weight
Empty weight per leg section
3.5 KG
Empty weight per middle section
3.0 KG
Filled weight per leg section
4.3 KG
Filled weight per middle section
3.8 KG

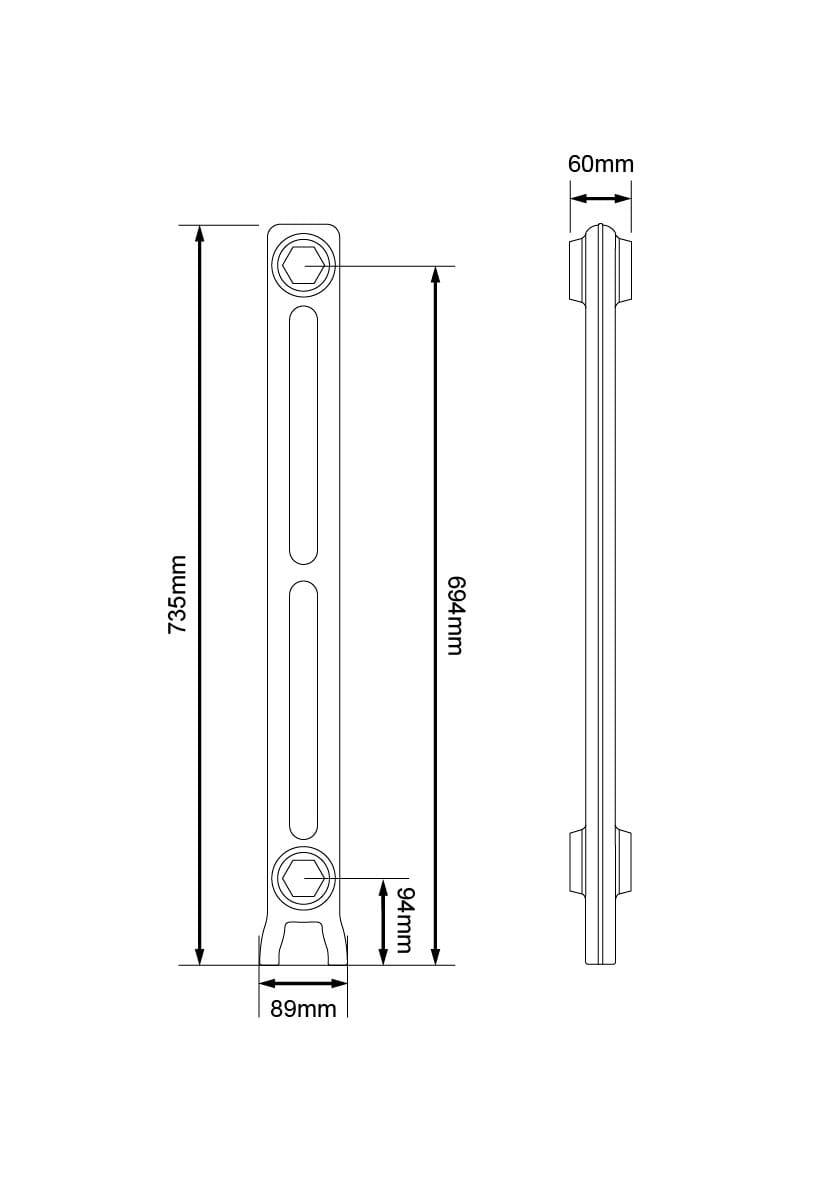

735mm Height Information
Leg Section Height 735 mm
Section Length 60 mm
Middle Section Height 684 mm
Section Depth 89 mm
Bottom Inlet To Floor 94 mm
Top Inlet To Floor 694 mm
Pipe Centres To Skirt 44.5 mm
Heat Output
Delta at 50˚C 62 Watts / 211 BTUs
Weight
Empty weight per leg section
4.2 KG
Empty weight per middle section
4 KG
Filled weight per leg section
5.2 KG
Filled weight per middle section
5 KG

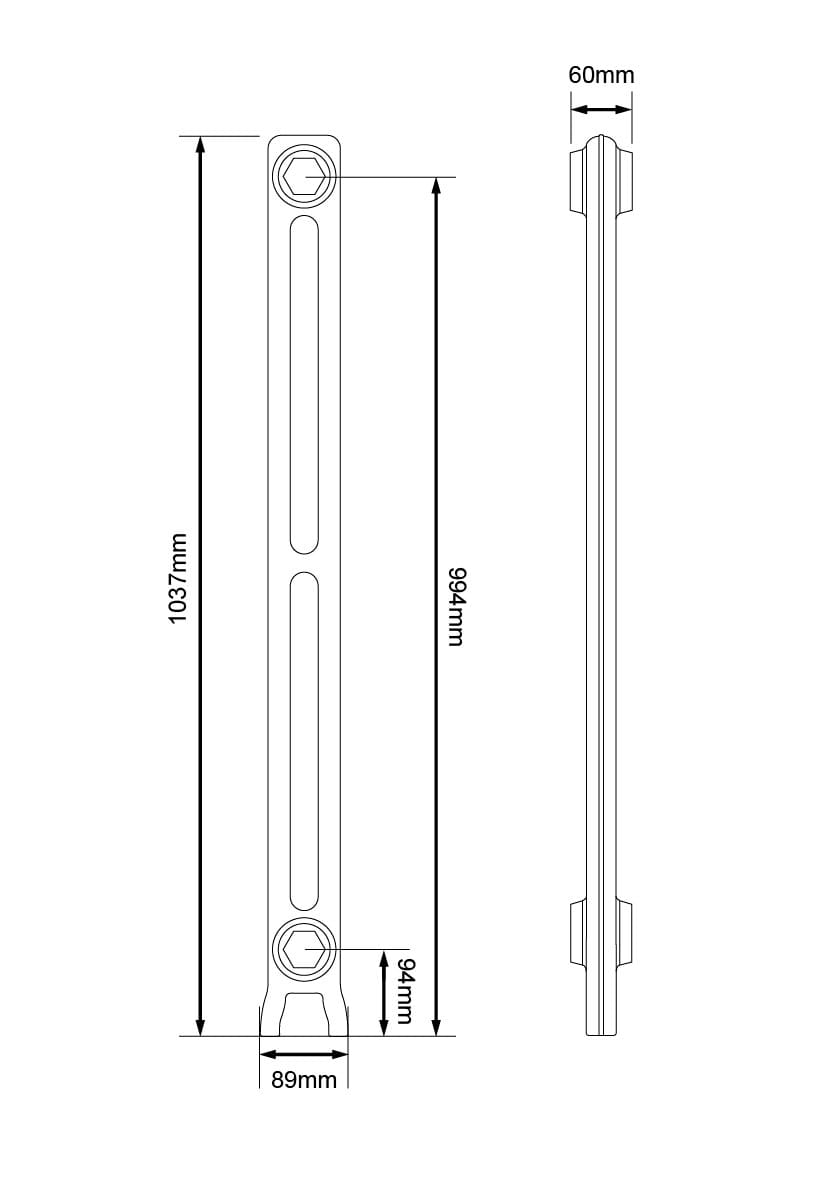

1037mm Height Information
Leg Section Height 1037 mm
Section Length 60 mm
Middle Section Height 981 mm
Section Depth 89 mm
Bottom Inlet To Floor 94 mm
Top Inlet To Floor 994 mm
Pipe Centres To Skirt 44.5 mm
Heat Output
Delta at 50˚C 86Watts / 293 BTUs
Weight
Empty weight per leg section
5.7 KG
Empty weight per middle section 5.2 KG
Filled weight per leg section
6.9 KG
Filled weight per middle section
6.4 KG

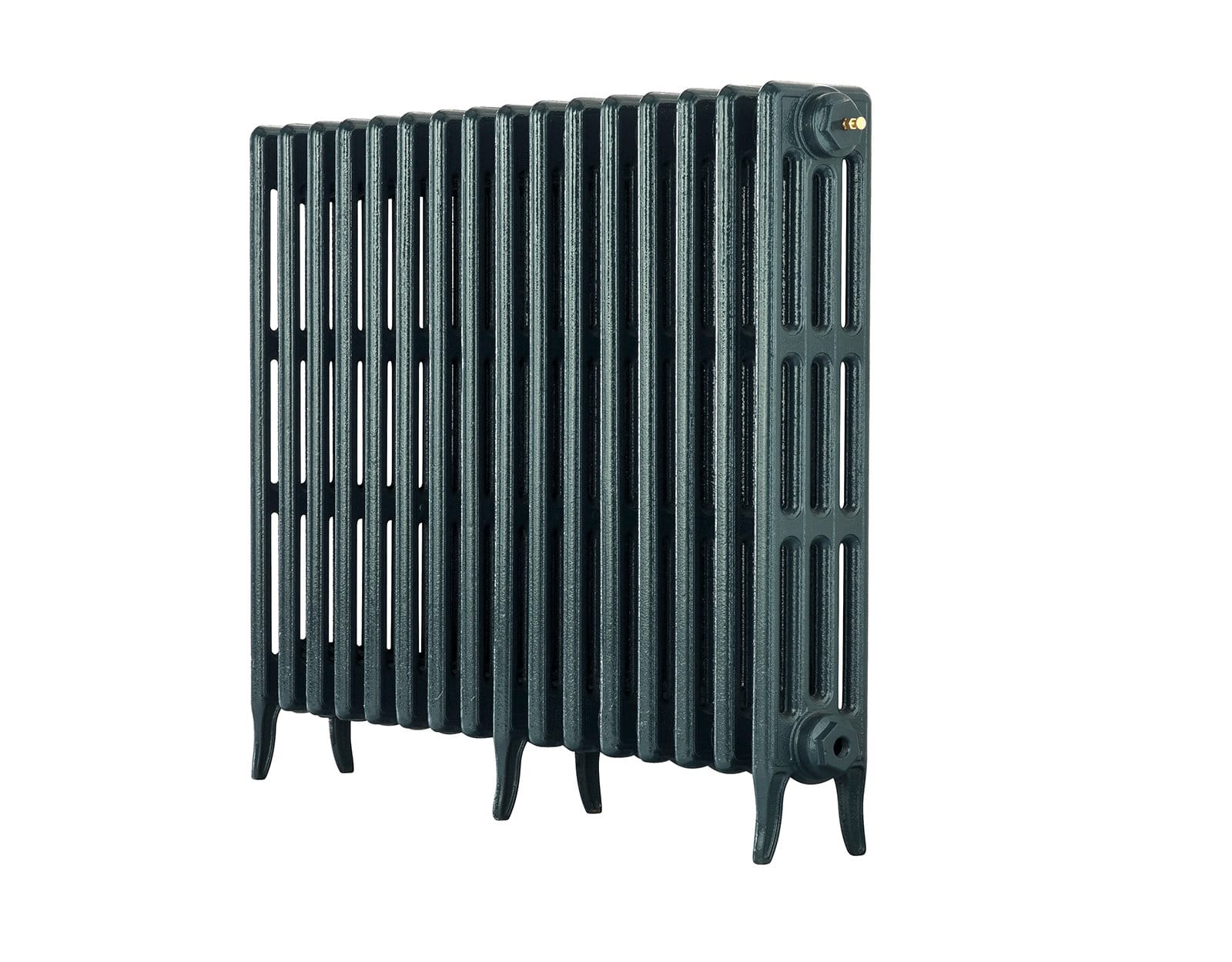

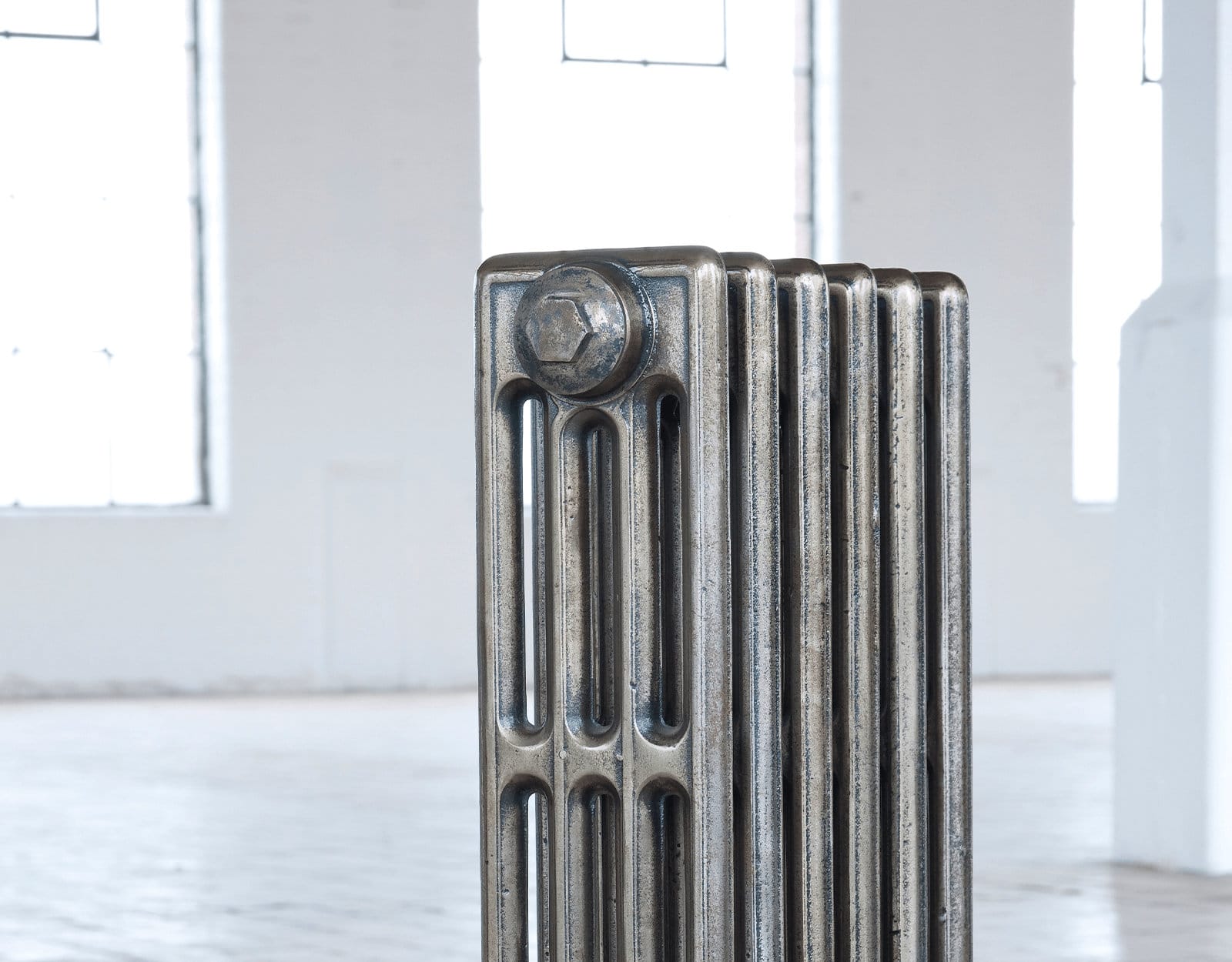

The Ashbury 4 Column Radiator
Bold. Beautiful. Historic.
The Ashbury cast iron radiator embodies the quiet confidence of Edwardian design structured, stately, and
effortlessly timeless. With its robust 4-column profile and deep set detailing, it delivers generous heat output while anchoring interiors with period-authentic charm.
Available in a range of sizes to suit both compact and grand spaces, the Ashbury is a favourite among restoration experts, boutique developers, and discerning designers. Its bold form suits traditional settings and adds gravitas to contemporary rooms seeking a hint of heritage.
Crafted using traditional casting methods and finished to your exacting specification, whether polished to a warm gleam or painted to match your palette. The Ashbury is as much a visual centrepiece as it is a practical necessity.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

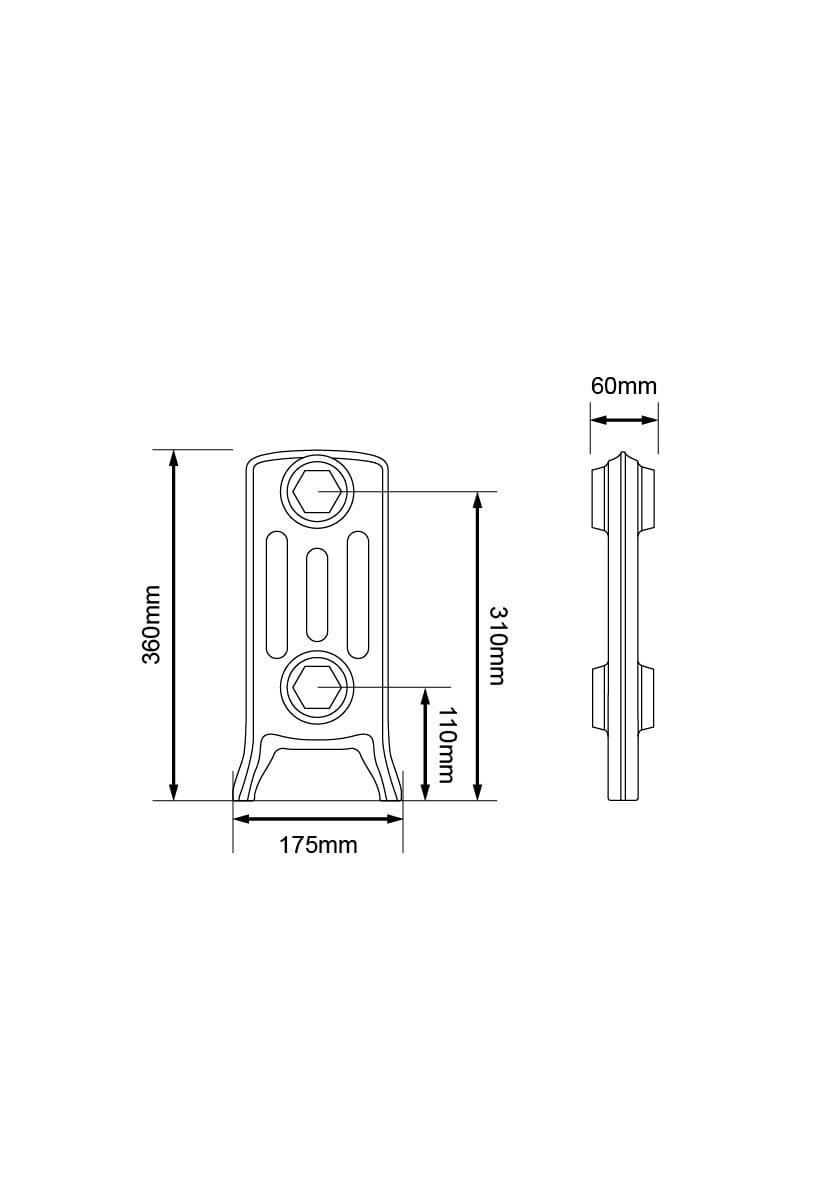

360mm Height Information
Leg Section Height 360 mm
Section Length 60 mm
Middle Section Height 300 mm
Section Depth 175 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 310 mm
Pipe Centres To Skirt 87.5 mm
Heat Output
Delta at 50˚C 47 Watts / 160 BTUs
Weight
Empty weight per leg section
3.7 KG
Empty weight per middle section
3.3 KG
Filled weight per leg section
4.2 KG
Filled weight per middle section
3.8 KG

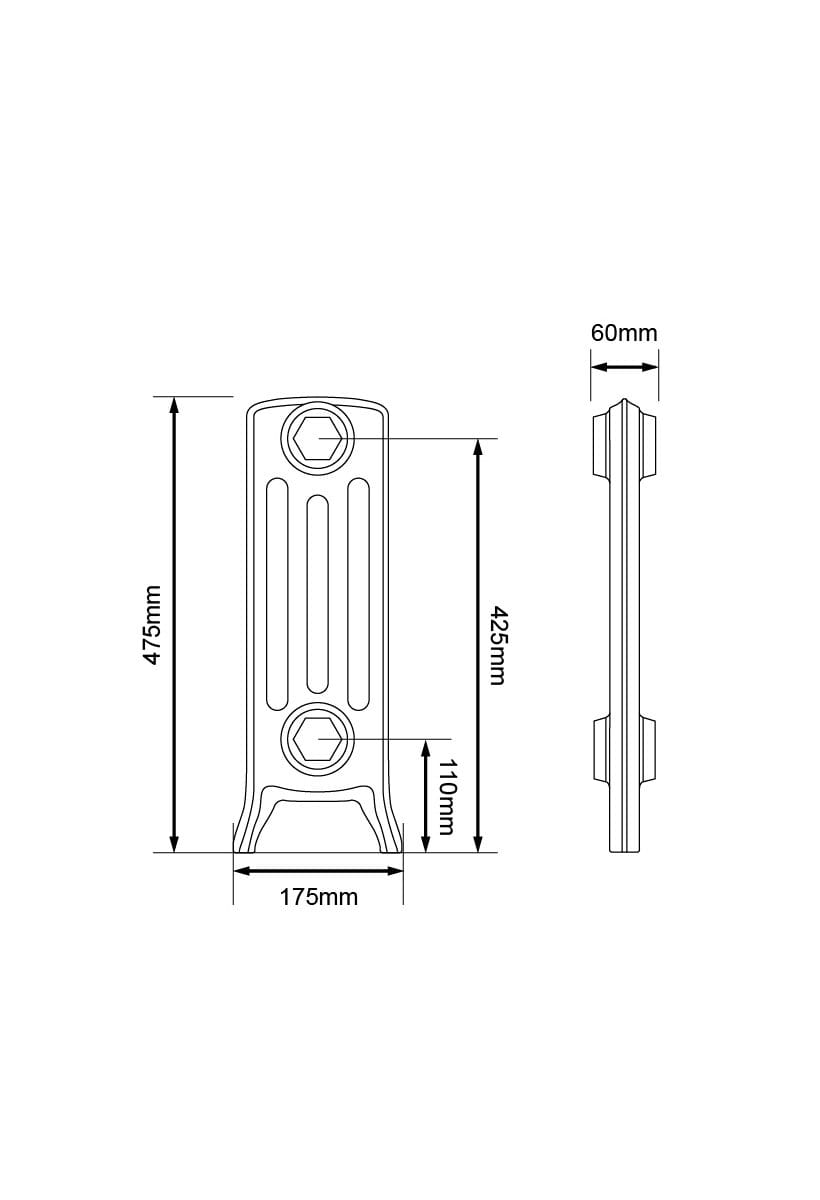

475mm Height Information
Leg Section Height 475 mm
Section Length 60 mm
Middle Section Height 412 mm
Section Depth 175 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 425 mm
Pipe Centres To Skirt 87.5 mm
Heat Output
Delta at 50˚C 63 Watts / 215 BTUs
Weight
Empty weight per leg section
4.6 KG
Empty weight per middle section
4.2 KG
Filled weight per leg section
5.6 KG
Filled weight per middle section
5.2 KG

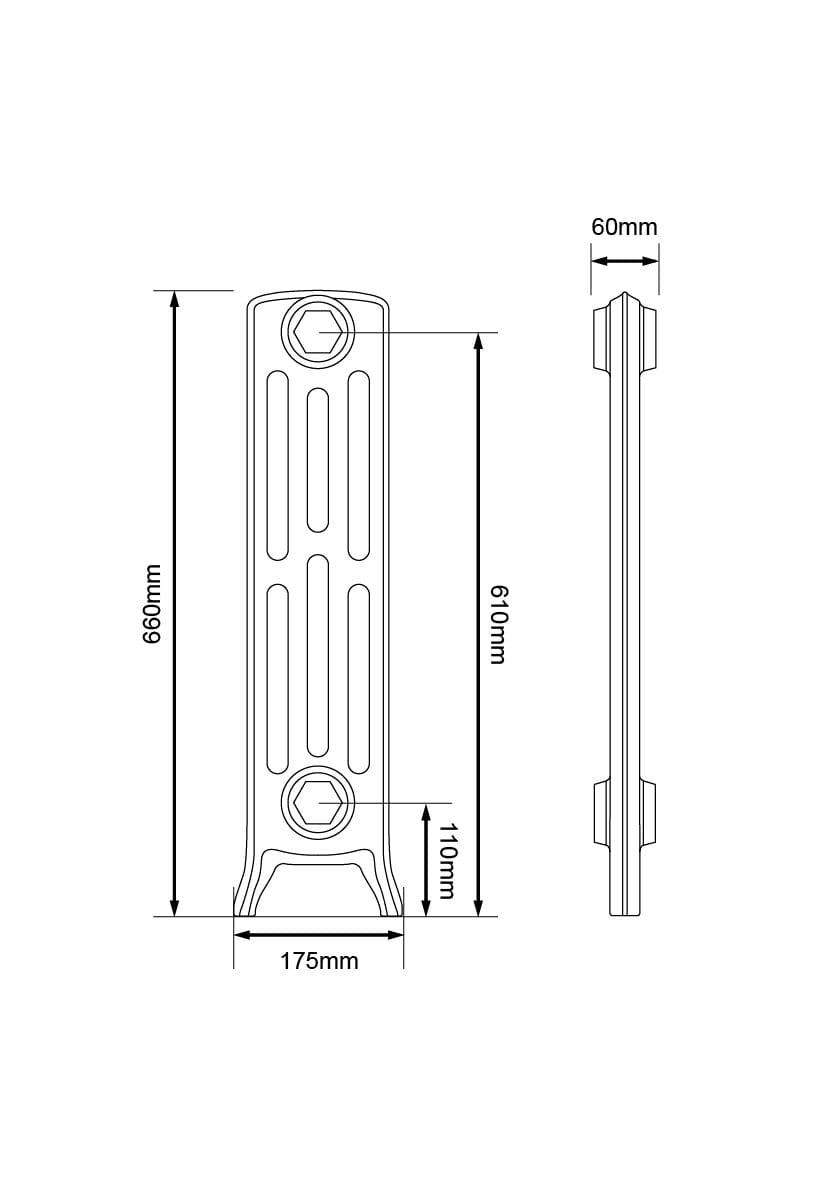

660mm Height Information
Leg Section Height 660 mm
Section Length 60 mm
Middle Section Height 596 mm
Section Depth 175 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 610 mm
Pipe Centres To Skirt 87.5 mm
Heat Output
Delta at 50˚C 88 Watts / 300 BTUs
Weight
Empty weight per leg section
5.8KG
Empty weight per middle section
5.1 KG
Filled weight per leg section
6.9 KG
Filled weight per middle section
6.2 KG

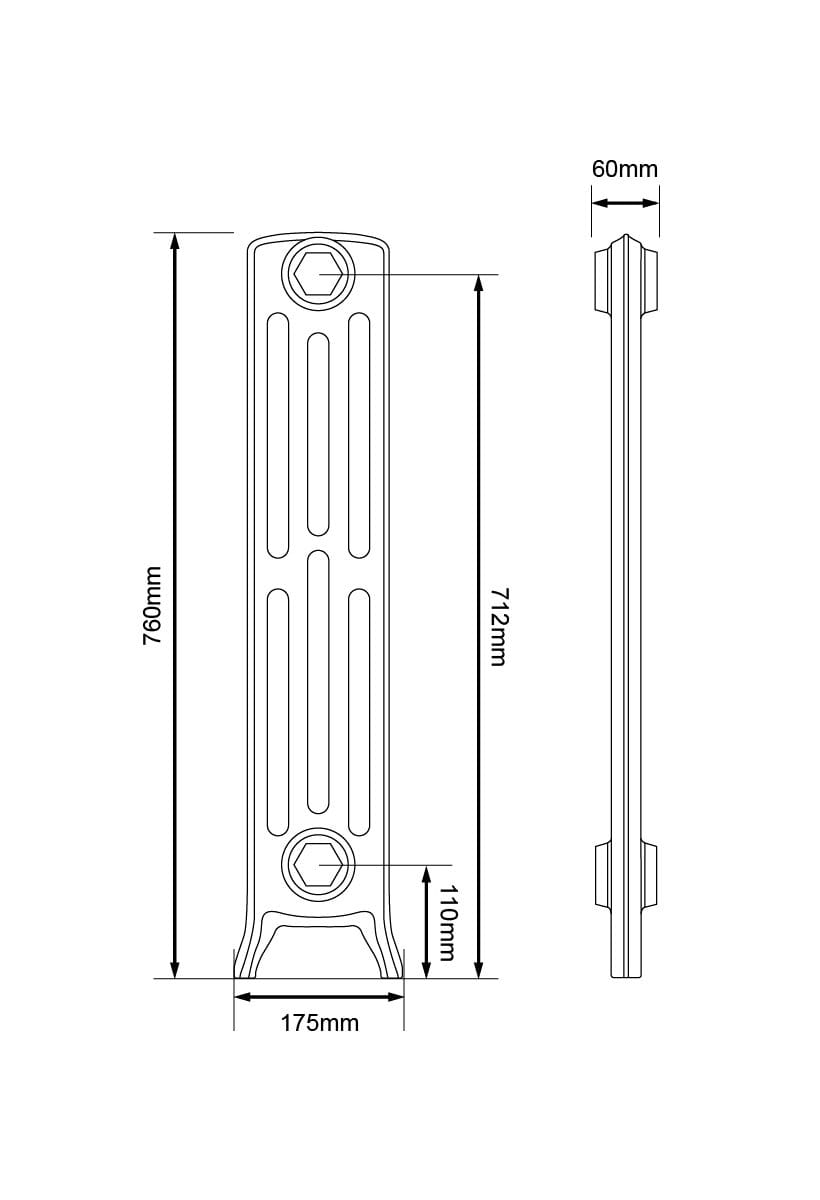

760mm Height Information
Leg Section Height 760 mm
Section Length 60 mm
Middle Section Height 700 mm
Section Depth 175 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 712 mm
Pipe Centres To Skirt 87.5 mm
Heat Output
Delta at 50˚C 101 Watts / 344 BTUs
Weight
Empty weight per leg section
6.7 KG
Empty weight per middle section
6.3 KG
Filled weight per leg section
7.9 KG
Filled weight per middle section
7,5 KG

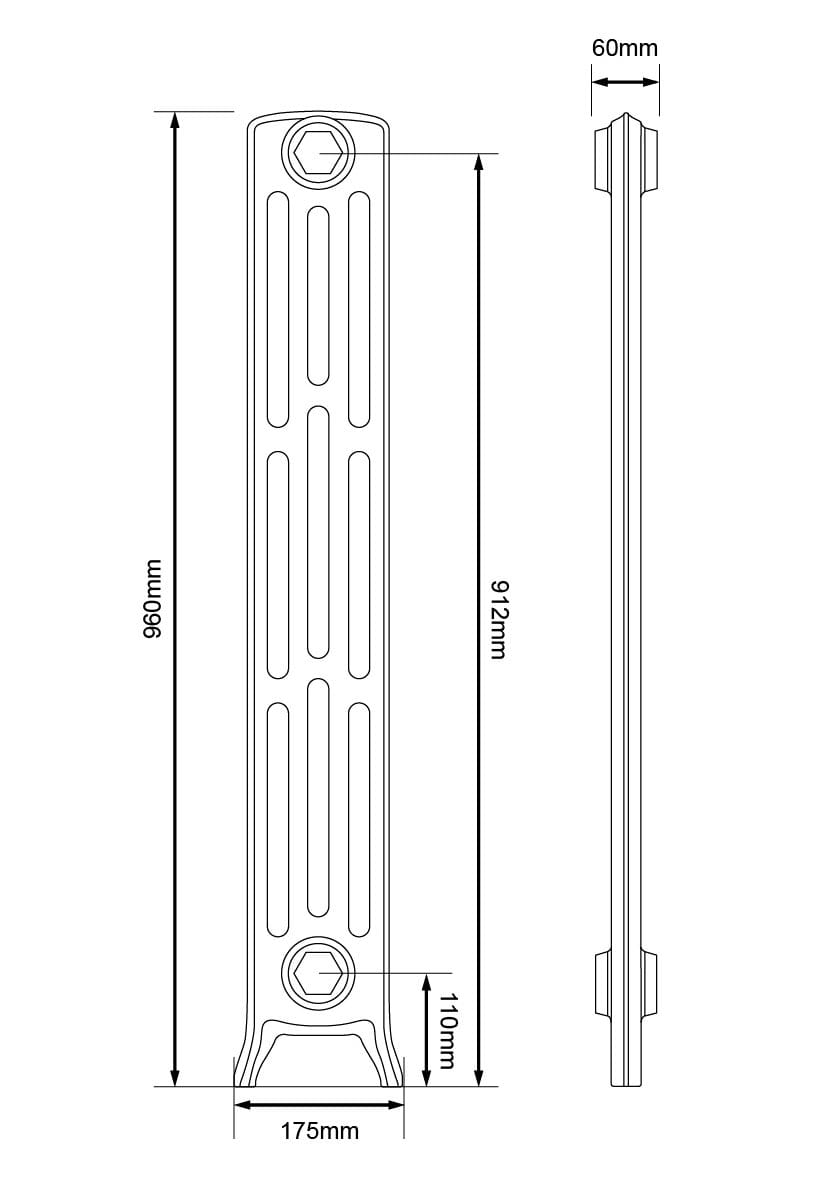

960mm Height Information
Leg Section Height 960 mm
Section Length 60 mm
Middle Section Height 898 mm
Section Depth 175 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 912 mm
Pipe Centres To Skirt 87.5 mm
Heat Output
Delta at 50˚C 125 Watts / 426 BTUs
Weight
Empty weight per leg section
8.4 KG
Empty weight per middle section
7.4 KG
Filled weight per leg section
9.9 KG
Filled weight per middle section
8.9 KG

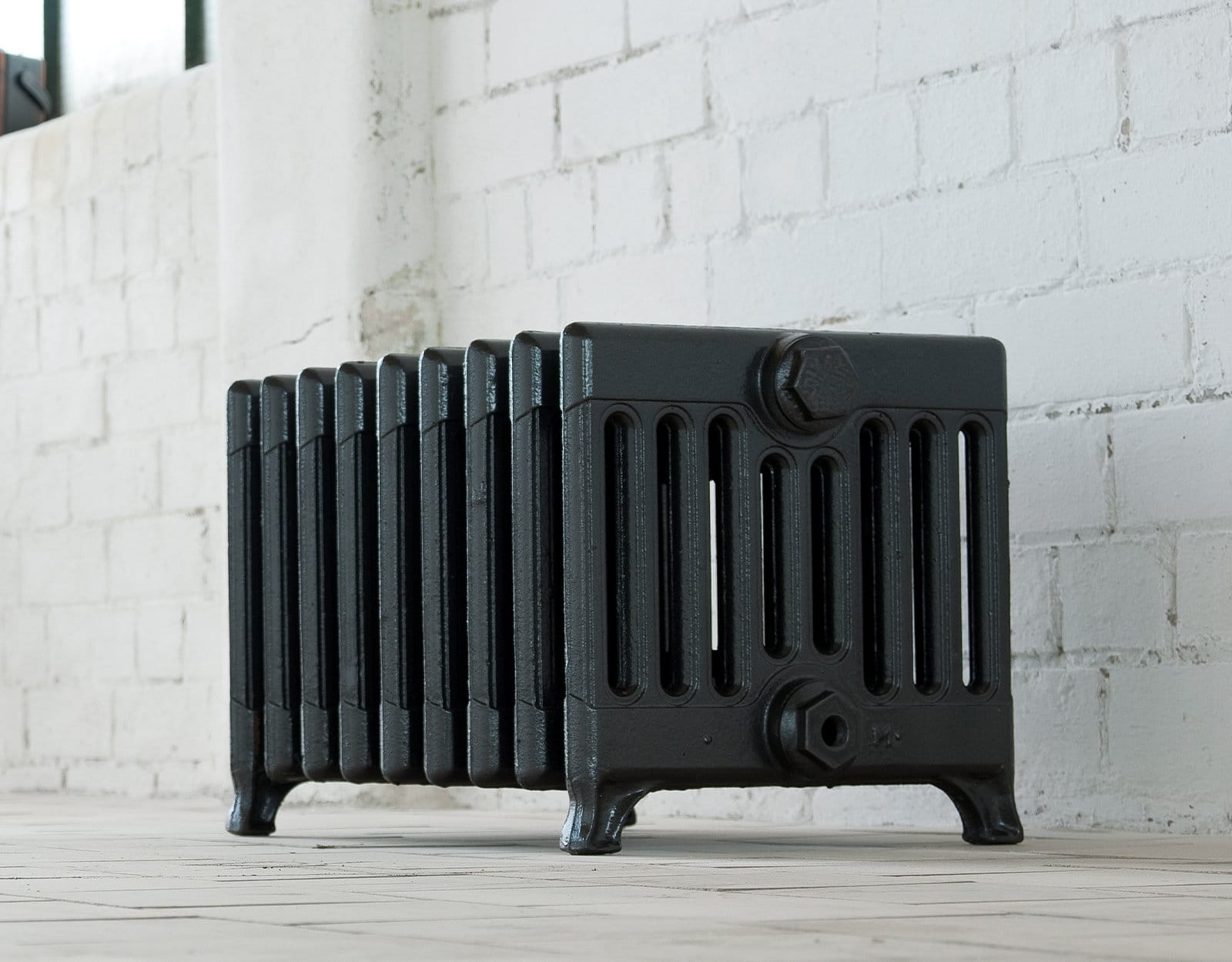

The Ashbury 6 Column Radiator
Commanding. Elegant. Reliable.
The Ashbury 6 Column is the boldest expression of Edwardian refinement, offering impressive heat output with commanding presence. Its deep-set columns and robust form are perfectly suited to larger rooms, high ceilings, and spaces where warmth and character must go hand in hand.
Ideal for heritage restorations, spacious conversions, or new builds that echo the charm of the past, the Ashbury 6 Column combines substance with sophistication. The additional depth enhances both its heating capability and its architectural appeal making it a favourite among developers and designers seeking impact without compromise.
Each radiator is individually cast using traditional techniques and can be finished in a wide range of paints or
polished to a timeless shine, creating a centrepiece that’s as practical as it is beautiful.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

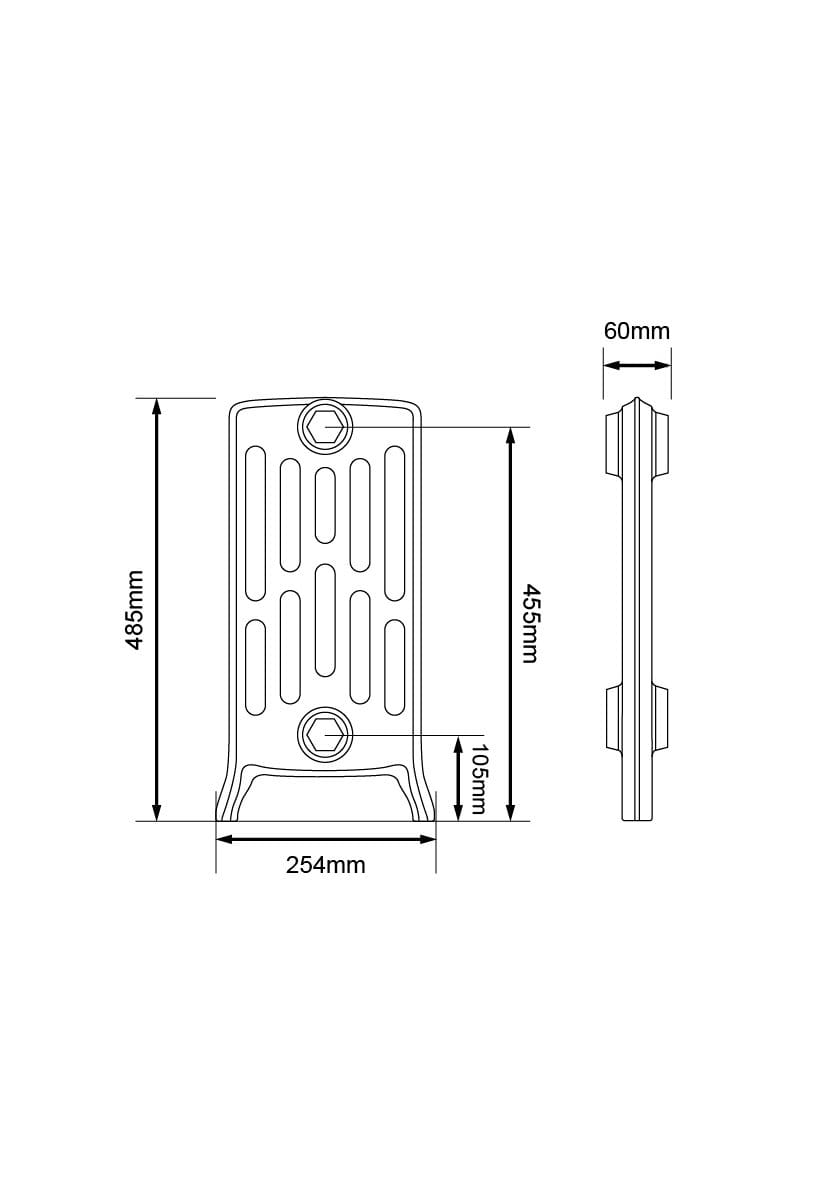

485mm Height Information
Leg Section Height 485 mm
Section Length 60 mm
Middle Section Height 423 mm
Section Depth 254 mm
Bottom Inlet To Floor 105 mm
Top Inlet To Floor 455 mm
Pipe Centres To Skirt 127 mm
Heat Output
Delta at 50˚C 95 Watts / 324 BTUs
Weight
Empty weight per leg section
6.9 KG
Empty weight per middle section
6.1 KG
Filled weight per leg section
7.7 KG
Filled weight per middle section
6.9 KG
660mm Height Information
Leg Section Height 660 mm
Section Length 60 mm
Middle Section Height 600 mm
Section Depth 252 mm
Bottom Inlet To Floor 115 mm
Top Inlet To Floor 615 mm
Pipe Centres To Skirt 126 mm
Heat Output
Delta at 50˚C 127 Watts / 433 BTUs
Weight
Empty weight per leg section
9.3 KG
Empty weight per middle section
8.1 KG
Filled weight per leg section
10.4 KG
Filled weight per middle section
9.2 KG

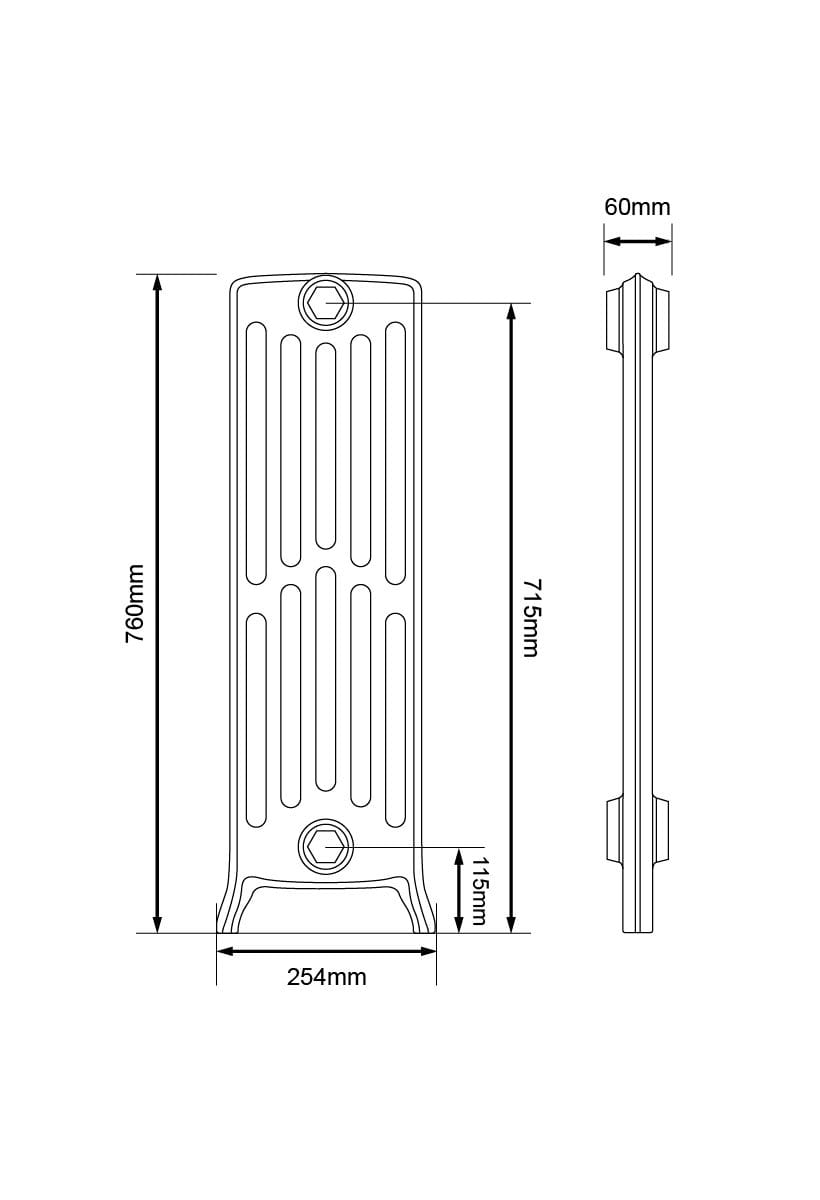

760mm Height Information
Leg Section Height 760 mm
Section Length 60 mm
Middle Section Height 700 mm
Section Depth 254 mm
Bottom Inlet To Floor 115 mm
Top Inlet To Floor 715 mm
Pipe Centres To Skirt 127 mm
Heat Output
Delta at 50˚C 148 Watts / 505 BTUs
Weight
Empty weight per leg section
9.9KG
Empty weight per middle section
8.7 KG
Filled weight per leg section
11.2 KG
Filled weight per middle section
10 KG
760mm Height Information
Leg Section Height 760 mm
Section Length 60 mm
Middle Section Height 700 mm
Section Depth 175 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 712 mm
Pipe Centres To Skirt 87.5 mm
Heat Output
Delta at 50˚C 101 Watts / 344 BTUs
Weight
Empty weight per leg section
6.7 KG
Empty weight per middle section
6.3 KG
Filled weight per leg section
7.9 KG
Filled weight per middle section
7,5 KG
960mm Height Information
Leg Section Height 960 mm
Section Length 60 mm
Middle Section Height 900 mm
Section Depth 250 mm
Bottom Inlet To Floor 115 mm
Top Inlet To Floor 915 mm
Pipe Centres To Skirt 125 mm
Heat Output
Delta at 50˚C 184 Watts / 627 BTUs
Weight
Empty weight per leg section
12.3 KG
Empty weight per middle section
13.8 KG
Filled weight per leg section
13 KG
Filled weight per middle section
13 KG

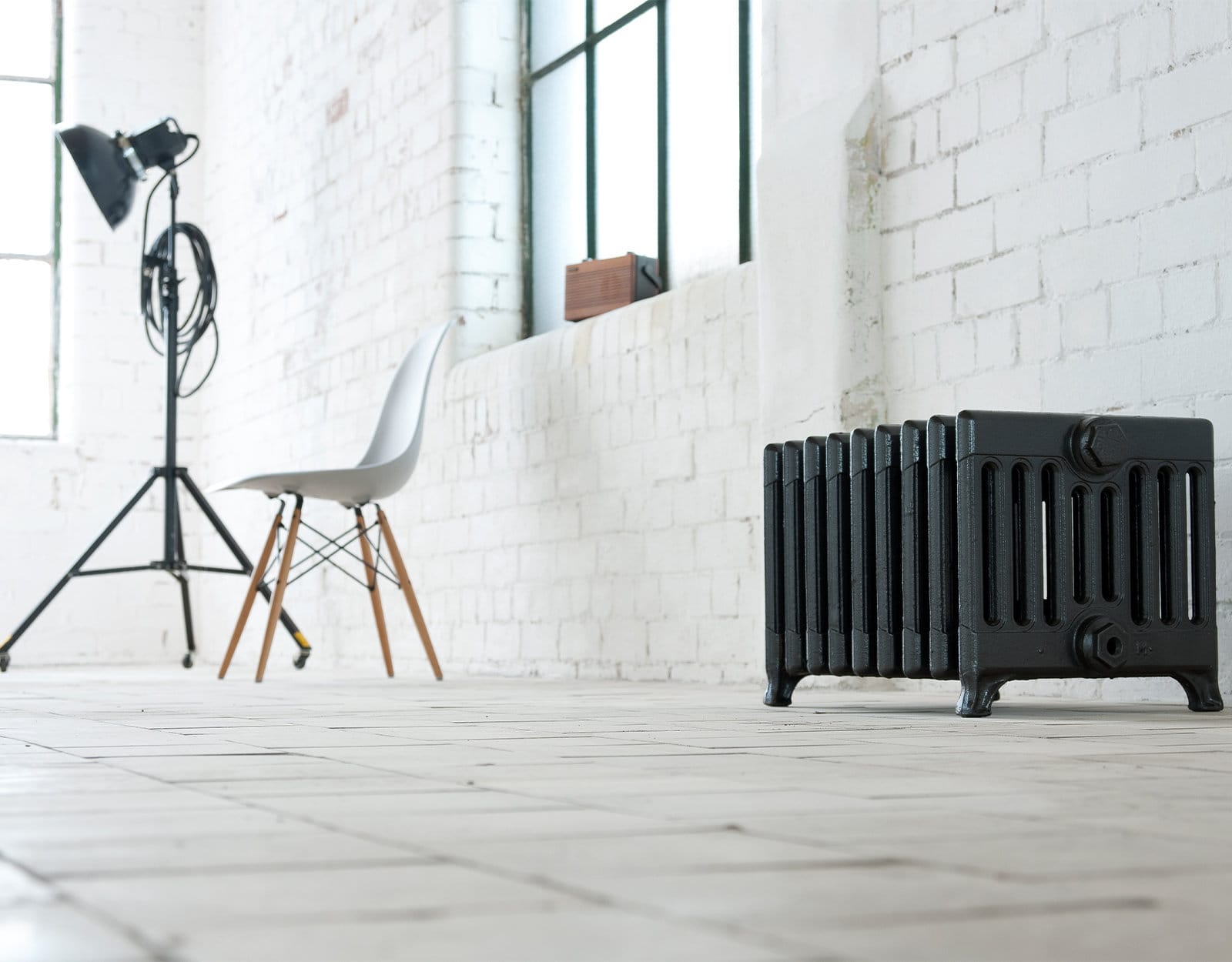

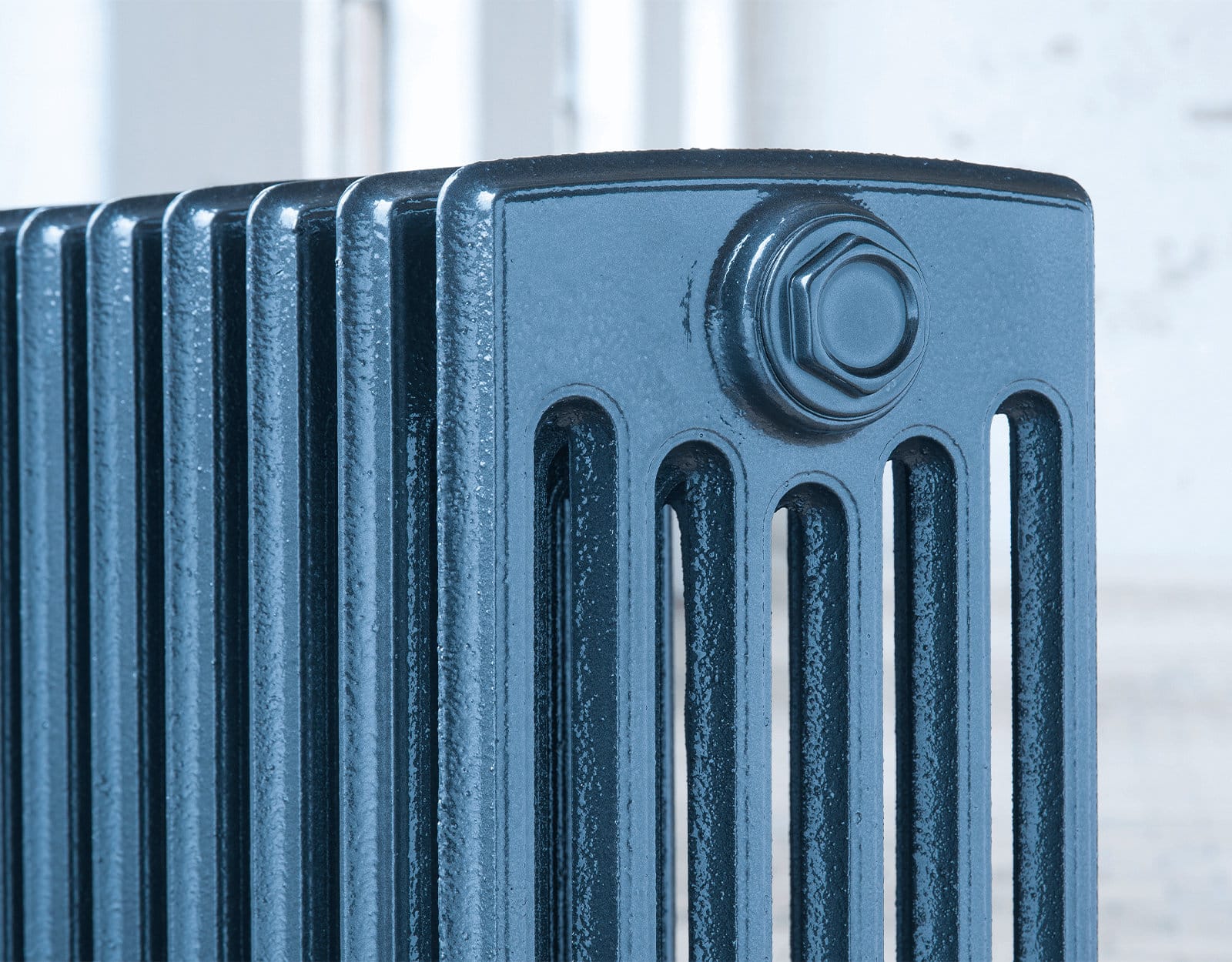

The Highbury 9 Cast Iron Radiator
Low. Powerful. Iconic.
With its distinctive 9-column design and low 330mm height, The Highbury is built for spaces that demand serious heat output without sacrificing wall space. Its broad, low profile makes it the ideal solution for positioning under sash windows, along glazed walls, or in rooms with limited vertical clearance, but where style and performance still matter.
Inspired by classic Victorian forms and engineered for modern comfort, The Highbury combines industrial strength with architectural grace. Its tightly spaced columns deliver exceptional warmth, while its bold silhouette brings weight and character to both period and contemporary interiors.
Available in a range of finishes from traditional heritage tones to polished or painted statement colours.
The Highbury is as adaptable as it is powerful.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

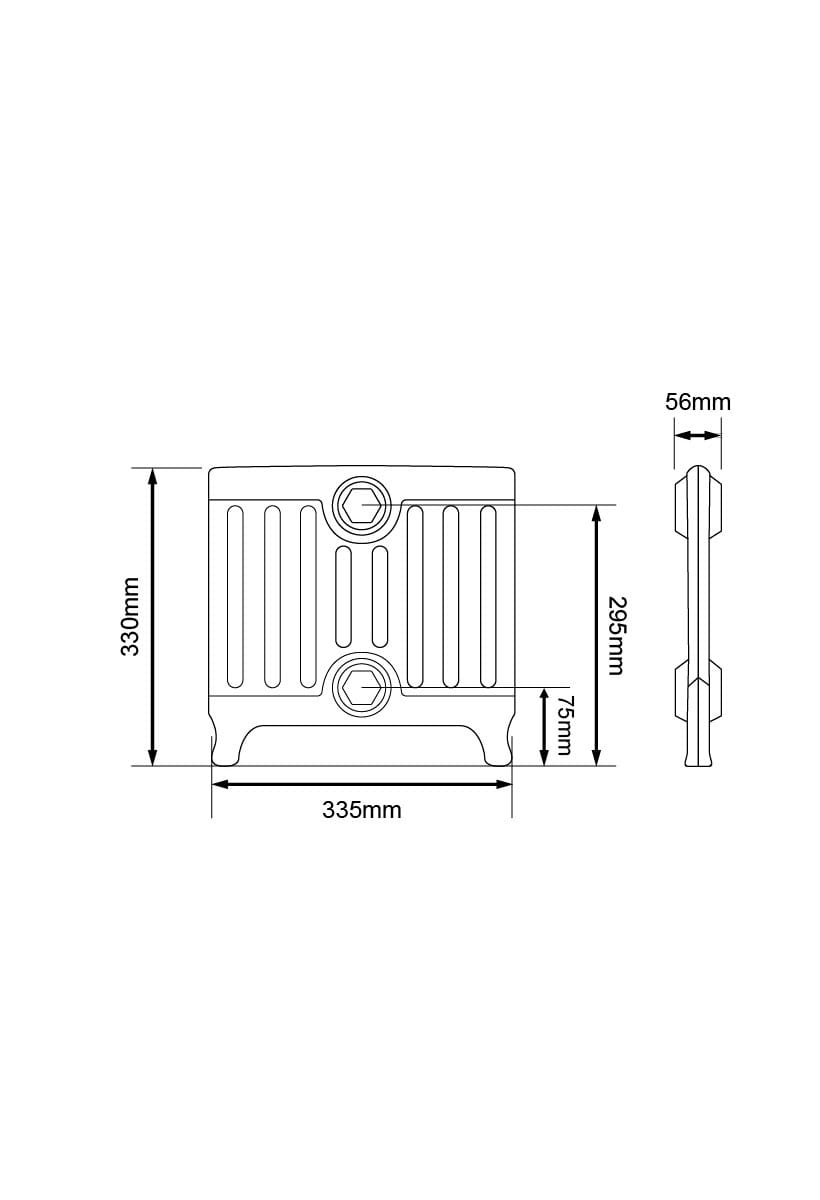

Dimensions
Leg Section Height 330 mm
Section Length 56 mm
Middle Section Height 292 mm
Section Depth 335 mm
Bottom Inlet To Floor 75 mm
Top Inlet To Floor 295 mm
Pipe Centres To Skirt 167.5 mm
Weight
Empty weight per leg section
7.8 KG
Empty weight per middle section
7.4 KG
Filled weight per leg section
8.6 KG
Filled weight per middle section
8.2 KG
Heat Output per section
Delta at 50˚C 98 Watts / 334 BTUs
The Langley Cast Iron Radiator
Refined. Radiant. Resilient
The Langley Cast Iron Radiator masterfully blends classic design with superior heating performance. Its graceful column detailing and sturdy construction create a striking focal point in any room, while its deep radiant heat fills your space with lasting comfort.
Available in three versatile heights 549mm, 748mm, and 810mm, the Langley adapts effortlessly to any
interior, whether enhancing the charm of a period property or adding character to a contemporary home. Crafted from premium cast iron, it absorbs heat slowly and releases it steadily, maintaining a consistent
temperature for hours. This not only eliminates cold spots but also improves energy efficiency, helping to lower heating costs over time.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

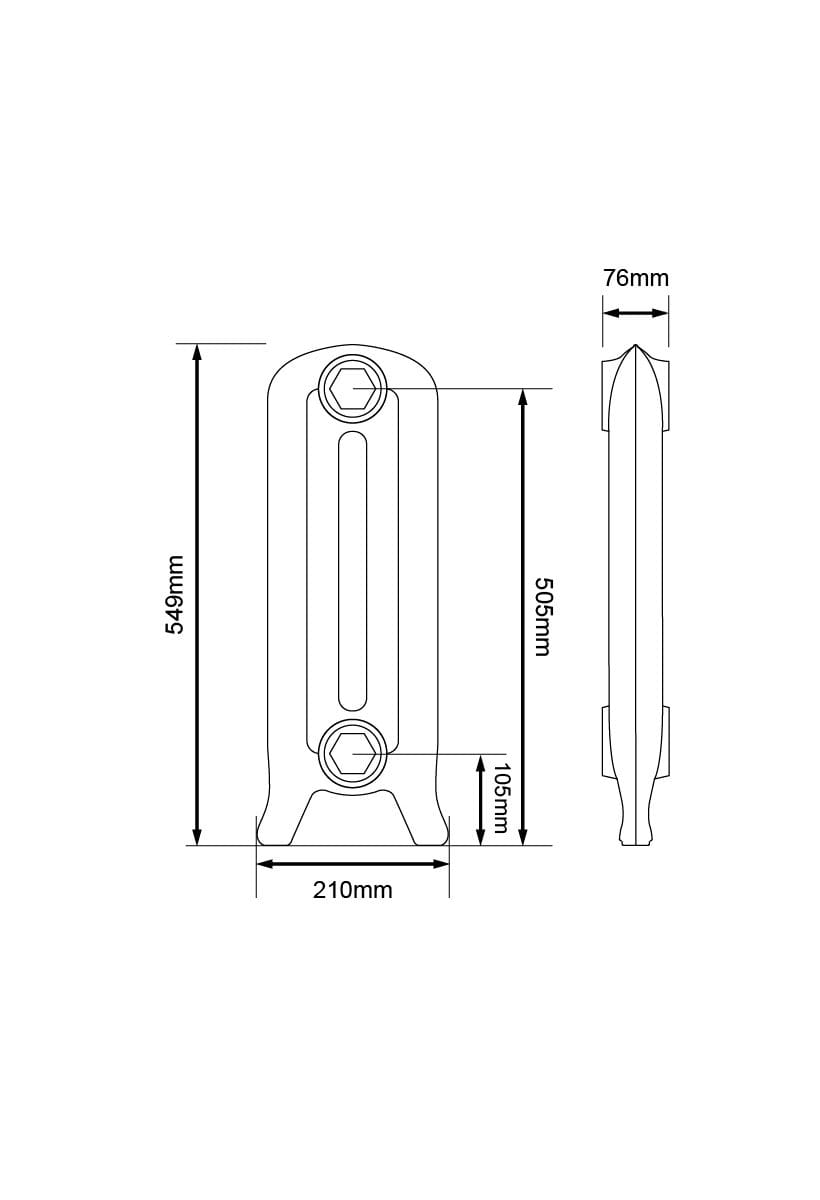

459mm Height Information
Leg Section Height 549 mm
Section Length 76 mm
Middle Section Height 500 mm
Section Depth 210 mm
Bottom Inlet To Floor 105 mm
Top Inlet To Floor 505 mm
Pipe Centres To Skirt 105 mm
Heat Output
Delta at 50˚C 87 Watts / 297 BTUs
Weight
Empty weight per leg section
7.6 KG
Empty weight per middle section
5.5 KG
Filled weight per leg section
9.6 KG
Filled weight per middle section
7.5 KG

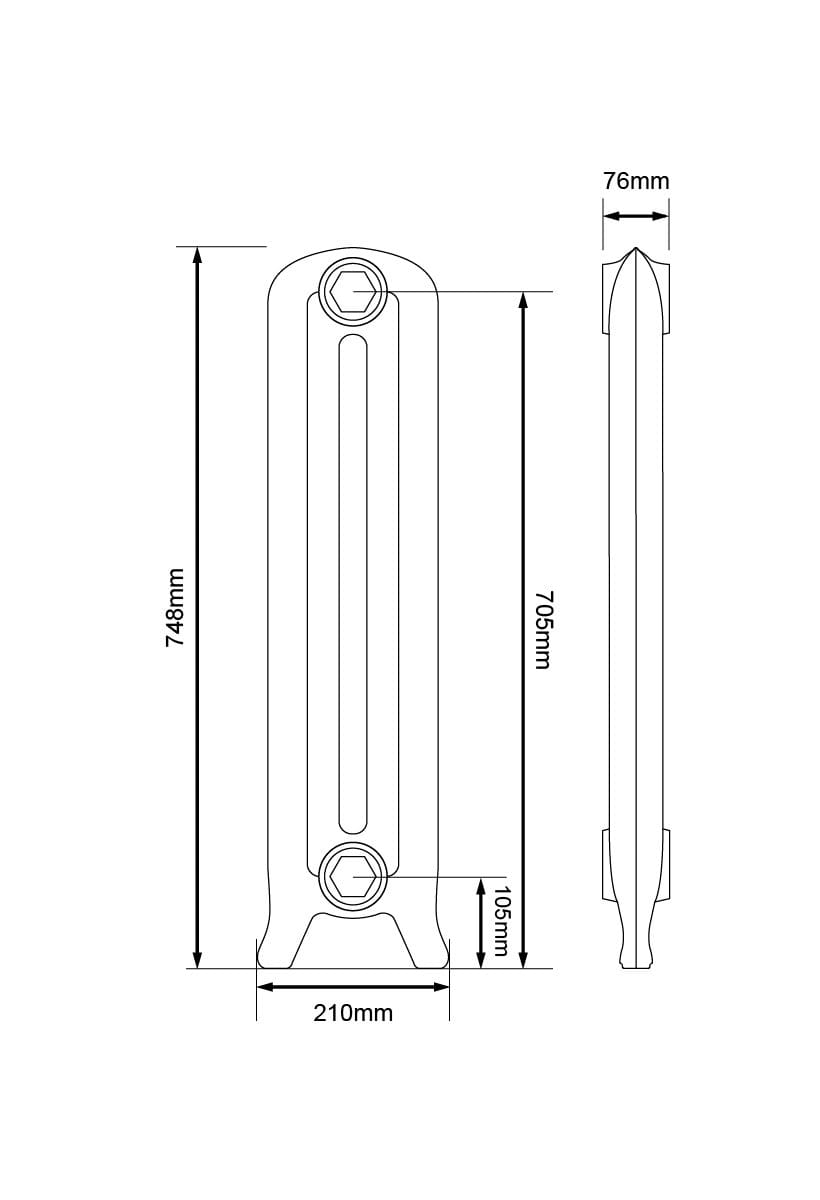

748mm Height Information
Leg Section Height 748 mm
Section Length 76 mm
Middle Section Height 694 mm
Section Depth 210 mm
Bottom Inlet To Floor 105 mm
Top Inlet To Floor 705 mm
Pipe Centres To Skirt 105 mm
Heat Output
Delta at 50˚C 118 Watts / 402 BTUs
Weight
Empty weight per leg section
10.2 KG
Empty weight per middle section
9 KG
Filled weight per leg section
12.6 KG
Filled weight per middle section
11.4 KG

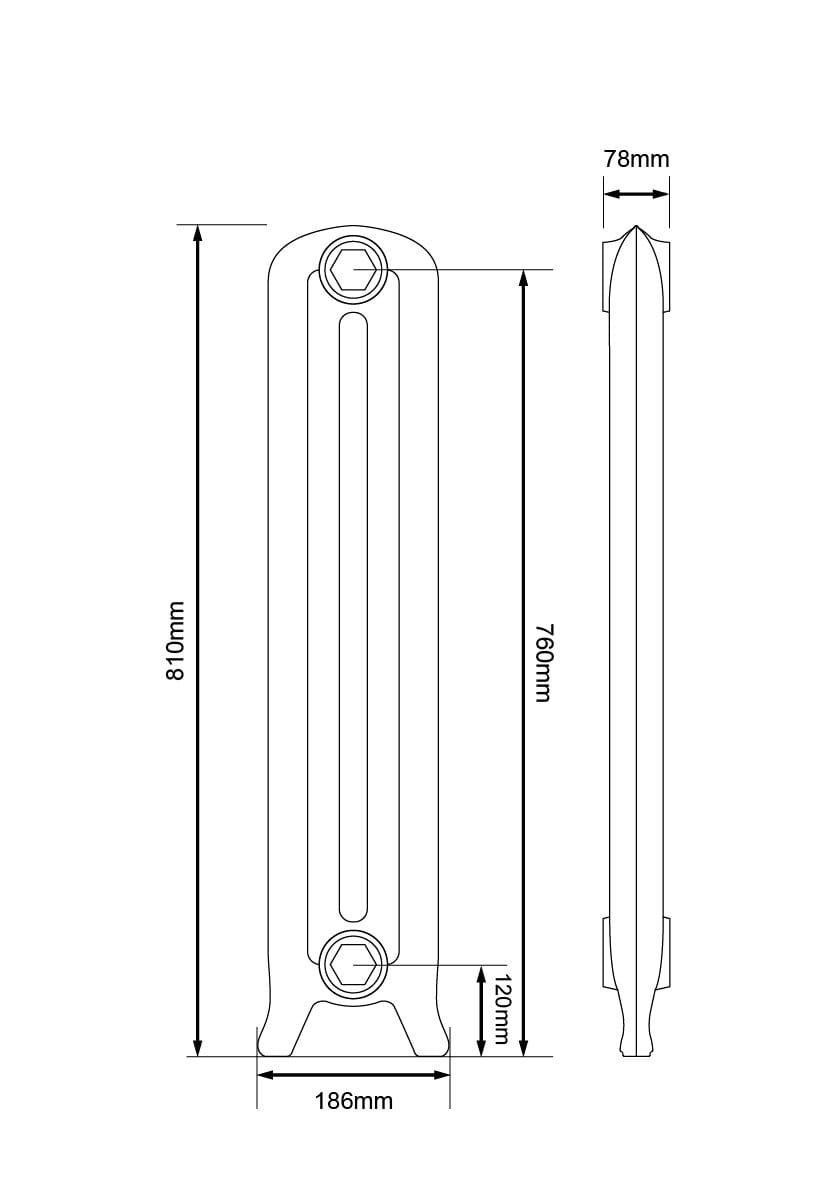

810mm Height Information
Leg Section Height 810 mm
Section Length 78 mm
Middle Section Height 730 mm
Section Depth 186 mm
Bottom Inlet To Floor 120 mm
Top Inlet To Floor 760 mm
Pipe Centres To Skirt 93 mm
Heat Output
Delta at 50˚C 125 Watts / 426 BTUs
Weight
Empty weight per leg section
10 KG
Empty weight per middle section
9.6 KG
Filled weight per leg section
12.6 KG
Filled weight per middle section
12.2 KG
The Regent Cast Iron Radiator
Distinguished. Soothing. Unfailing
Elevate your space with timeless warmth and enduring craftsmanship. Designed with stately columns and flawless proportions, this cast iron masterpiece delivers gentle, lasting heat while commanding attention as a focal point in any room. Available in three refined heights - 450mm for intimate spaces, 600mm for versatile appeal, and 795mm for grand statements.
Forged from premium cast iron, each radiator embodies heritage quality that improves with time, offering
superior heat retention and silent, efficient performance. More than mere heating, this is legacy warmth,
a permanent enhancement to your home's character and comfort.
The perfect union of form and function for those who appreciate life's lasting pleasures.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

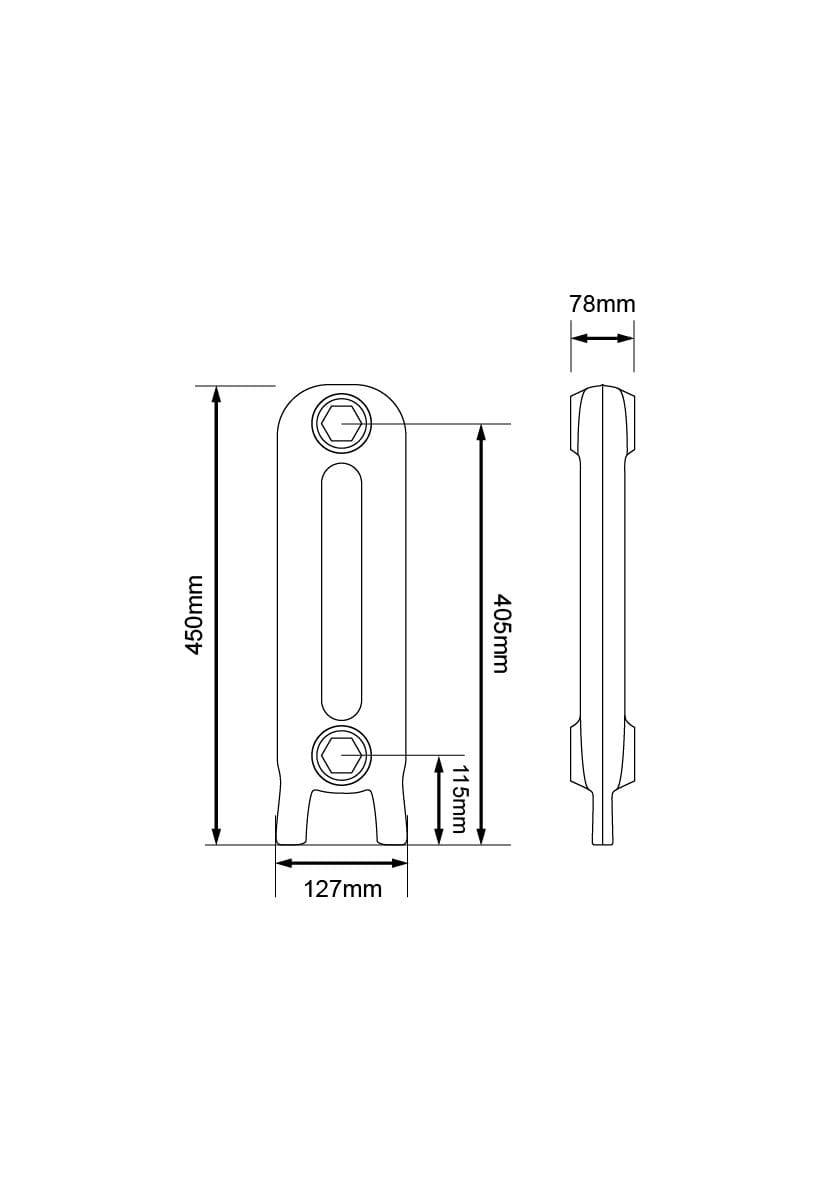

450mm Height Information
Leg Section Height 450 mm
Section Length 78 mm
Middle Section Height 395 mm
Section Depth 127 mm
Bottom Inlet To Floor 115 mm
Top Inlet To Floor 405 mm
Pipe Centres To Skirt 63.5 mm
Heat Output
Delta at 50˚C 55 Watts / 188 BTUs
Weight
Empty weight per leg section
5 KG
Empty weight per middle section
4.5 KG
Filled weight per leg section
6 KG
Filled weight per middle section
5.5 KG

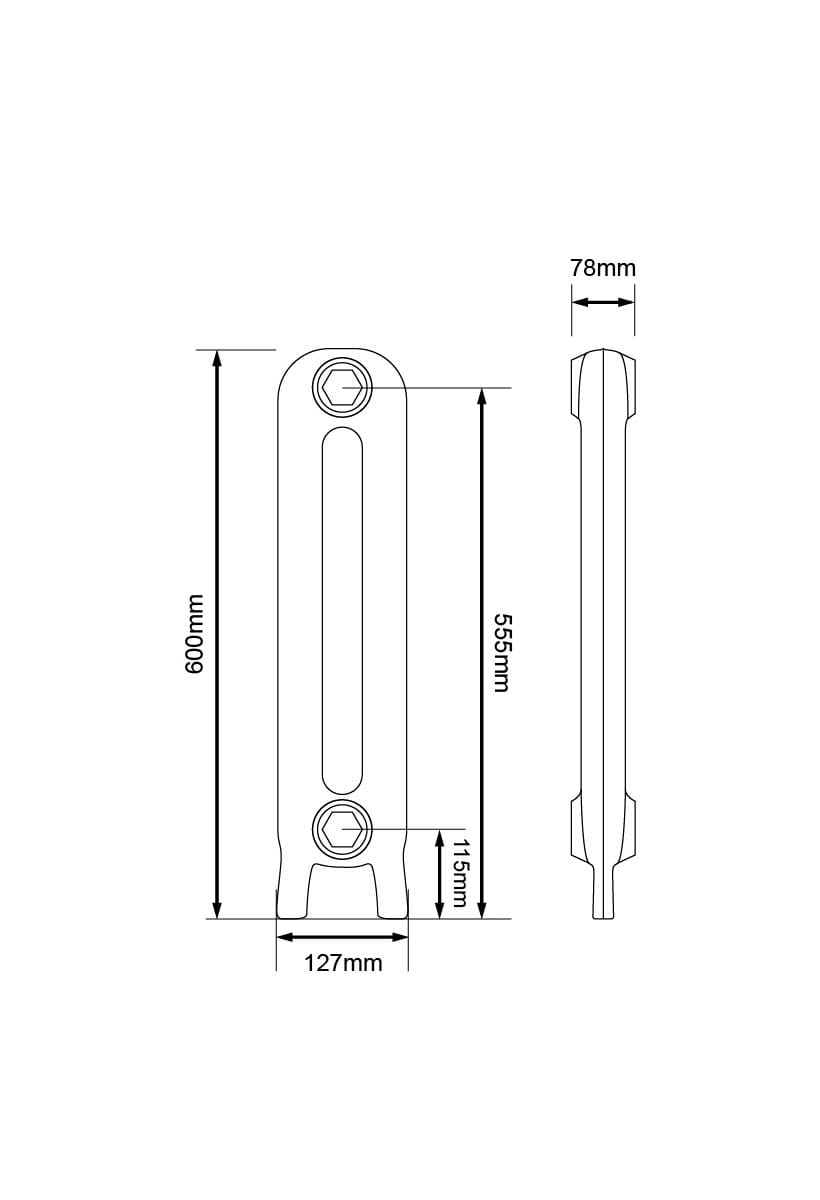

600mm Height Information
Leg Section Height 600 mm
Section Length 78 mm
Middle Section Height 545 mm
Section Depth 127 mm
Bottom Inlet To Floor 115 mm
Top Inlet To Floor 555 mm
Pipe Centres To Skirt 63.5 mm
Heat Output
Delta at 50˚C 75 Watts /256 BTUs
Weight
Empty weight per leg section
6.6 KG
Empty weight per middle section
6.2 KG
Filled weight per leg section
8 KG
Filled weight per middle section
7.6 KG

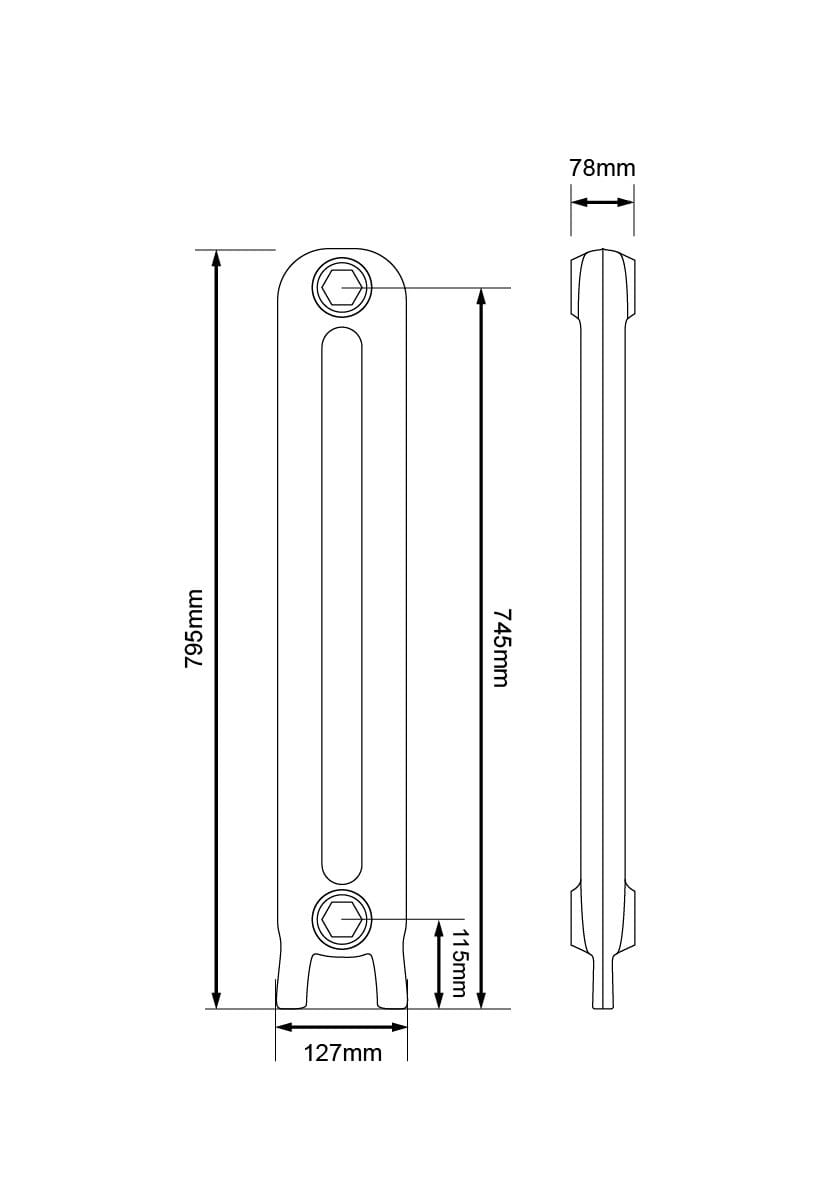

795mm Height Information
Leg Section Height 795 mm
Section Length 78 mm
Middle Section Height 740 mm
Section Depth 127 mm
Bottom Inlet To Floor 115 mm
Top Inlet To Floor 745 mm
Pipe Centres To Skirt 63.5 mm
Heat Output
Delta at 50˚C 97 Watts / 331 BTUs
Weight
Empty weight per leg section
8.7 KG
Empty weight per middle section
8.4 KG
Filled weight per leg section
10.4 KG
Filled weight per middle section
10.1 KG
The Victoria Cast Iron Radiator
Elegance. Permanence. Comfort
A timeless tribute to enduring craftsmanship, The Victoria radiator embodies the grace and substance of a bygone era. With its stately fluted columns and proud silhouette, this cast iron masterpiece commands attention while delivering unrivalled warmth through its gently radiant heat.
Available in two noble heights to suit your architectural needs: the 792mm for grand, high-ceilinged spaces that demand a focal point, and the 592mm for elegant everyday heating in living rooms and hallways. Each Victoria radiator is painstakingly crafted from solid cast iron, its considerable weight a promise of decades of silent service and exceptional heat retention that outlasts modern alternatives.
This is heating as it was meant to be: unhurried, substantial, and inherently dignified. The Victoria doesn't merely warm your room, it elevates it, transforming a functional necessity into a statement of quiet luxury and timeless taste.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

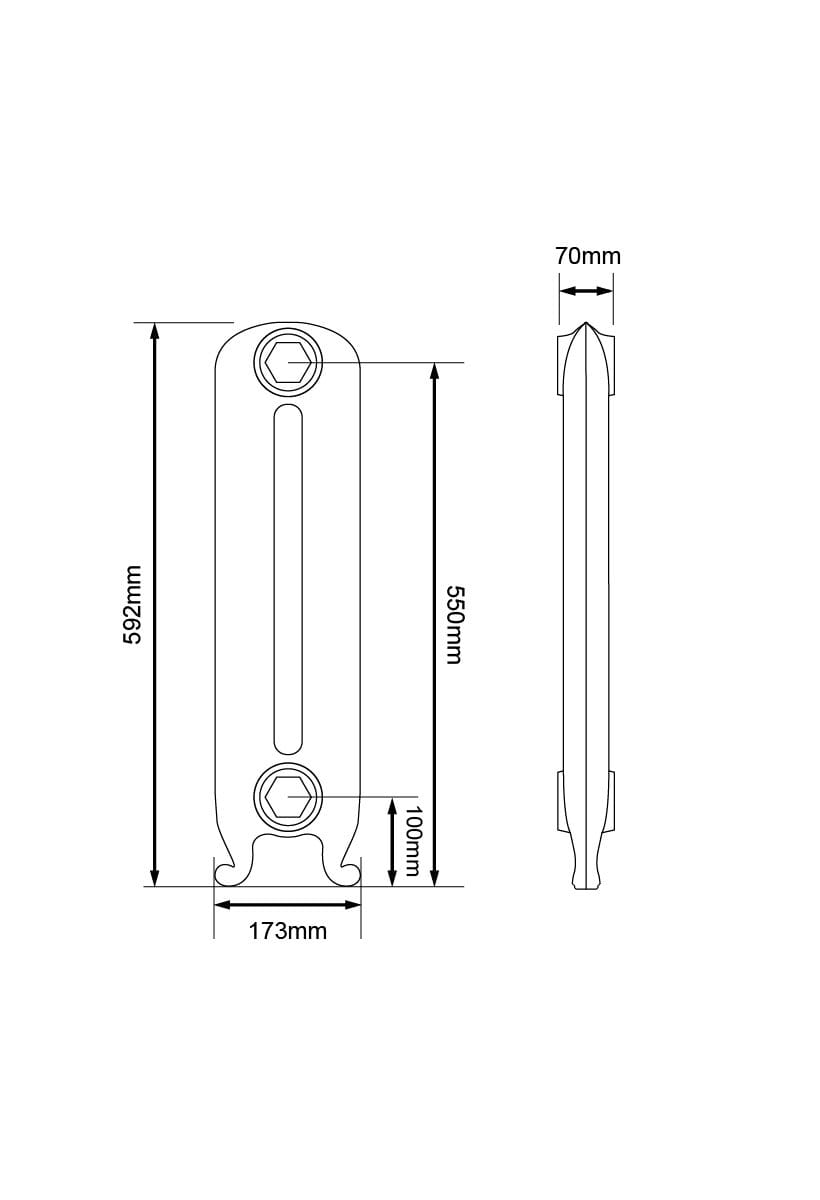

592mm Height Information
Leg Section Height 592 mm
Section Length 70 mm
Middle Section Height 537 mm
Section Depth 173 mm
Bottom Inlet To Floor 100 mm
Top Inlet To Floor 550 mm
Pipe Centres To Skirt 86.5 mm
Heat Output
Delta at 50˚C 88 Watts / 300 BTUs
Weight
Empty weight per leg section
8.4 KG
Empty weight per middle section
7.1 KG
Filled weight per leg section
10.3 KG
Filled weight per middle section
9 KG

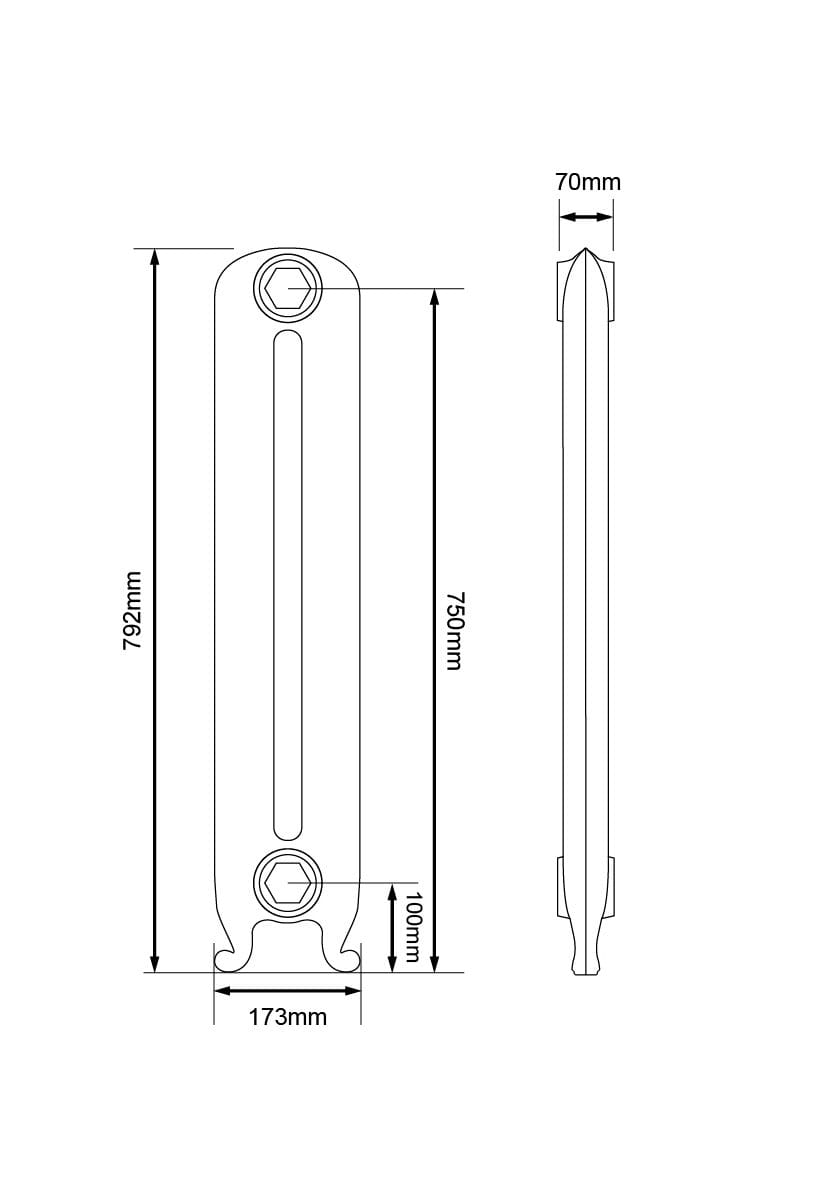

792mm Height Information
Leg Section Height 792 mm
Section Length 70 mm
Middle Section Height 736 mm
Section Depth 173 mm
Bottom Inlet To Floor 100 mm
Top Inlet To Floor 750 mm
Pipe Centres To Skirt 86.5 mm
Heat Output
Delta at 50˚C 118 Watts / 402 BTUs
Weight
Empty weight per leg section
9.9 KG
Empty weight per middle section
9 KG
Filled weight per leg section
12.3 KG
Filled weight per middle section
11.4 KG
The Duke Cast Iron Radiator
Classic. Reassuring. Regal.
Exuding quiet authority and timeless appeal, The Duke radiator represents the pinnacle of understated elegance in heating. Designed for those who appreciate substance over show, its clean-lined columns and balanced proportions bring a sense of quiet dignity to any interior while delivering the deep, radiant warmth only cast iron can provide.
Available in two perfectly proportioned heights, The Duke offers versatile sophistication: the 560mm model provides refined heating for private studies and bedrooms, while the 798mm version makes a stately impression in formal living spaces and grand rooms. Each piece is meticulously crafted from premium cast iron, ensuring decades of silent, reliable service and exceptional heat retention that modern alternatives simply cannot match.
Unlike transient heating solutions.
This is heating designed for the long view: uncompromising in quality, discreet in operation, and enduring in style. The Duke doesn't clamour for attention, but rewards those who understand that true refinement lies in the marriage of exceptional craftsmanship and quiet confidence.
Please get in touch to get your quotation today info@loupeinteriors.com
Please let us know the height you need and the ideal length but don't forget to leave 150 - 200mm for valve access. We would always recommend 2 radiator wall stays per radiator and pipe covers for those finishing touches.
Cast Iron radiators offer customisable finish options. We can match to any F&B Colours, RAL colours and a
beautiful selection of metallics. Drop us an email or a call to get a sample.

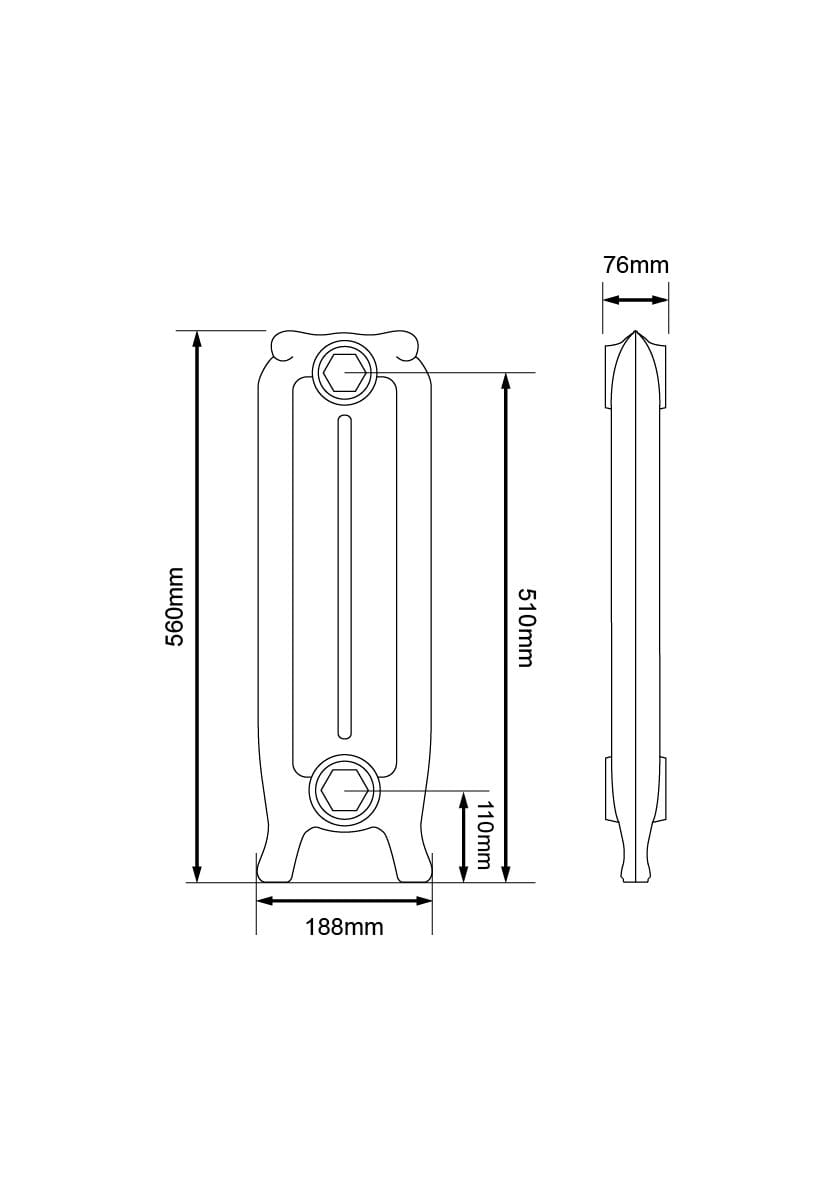

560mm Height Information
Leg Section Height 560 mm
Section Length 76 mm
Middle Section Height 495 mm
Section Depth 188 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 510 mm
Pipe Centres To Skirt 94 mm
Heat Output
Delta at 50˚C 87 Watts / 297 BTUs
Weight
Empty weight per leg section
9.2 KG
Empty weight per middle section
8.2 KG
Filled weight per leg section
11.3 KG
Filled weight per middle section
10.3 KG

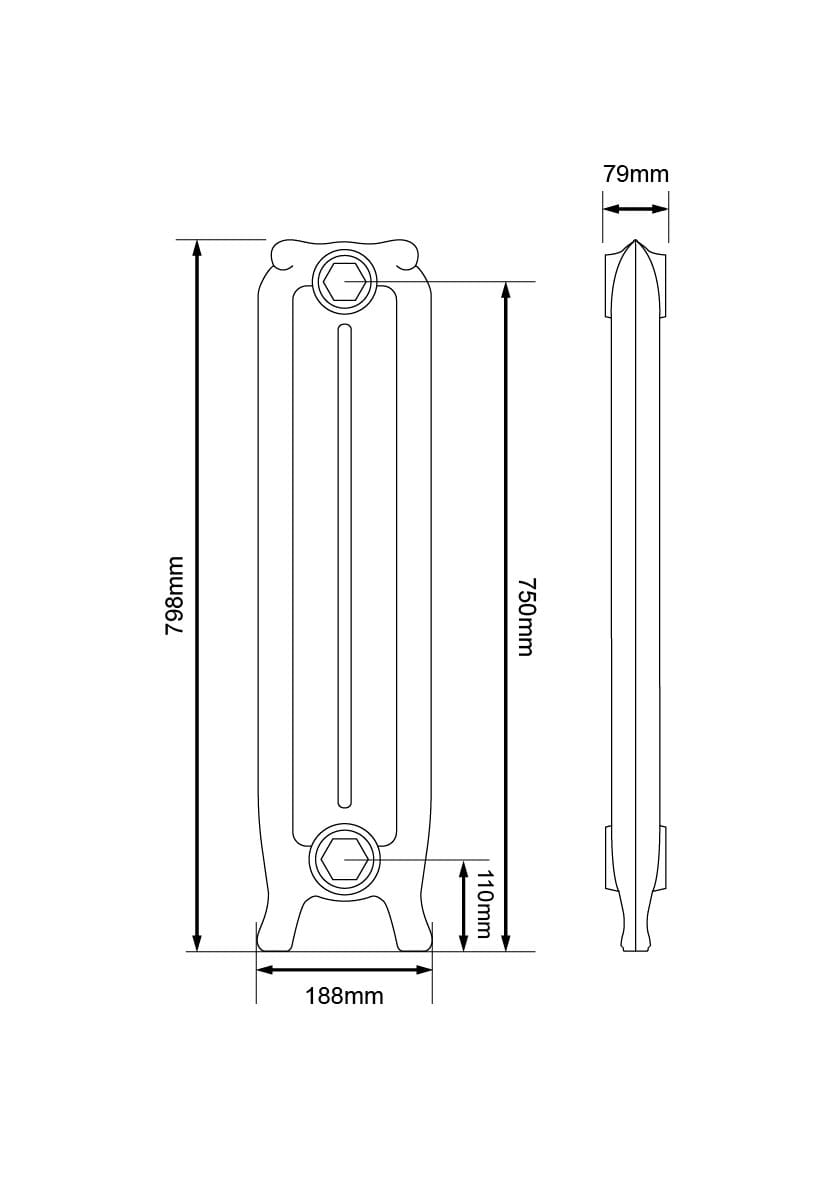

798mm Height Information
Leg Section Height 798 mm
Section Length 79 mm
Middle Section Height 736 mm
Section Depth 188 mm
Bottom Inlet To Floor 110 mm
Top Inlet To Floor 750 mm
Pipe Centres To Skirt 94 mm
Heat Output
Delta at 50˚C 126 Watts / 430 BTUs
Weight
Empty weight per leg section
12.6 KG
Empty weight per middle section
11.3 KG
Filled weight per leg section
15.5 KG
Filled weight per middle section
14.2 KG
